Siemens 6ES7331-7KF01-0AB0 Logic Controller Module

Siemens 6ES7323-1BH00-0AA0 Logic Controller Module

Product details

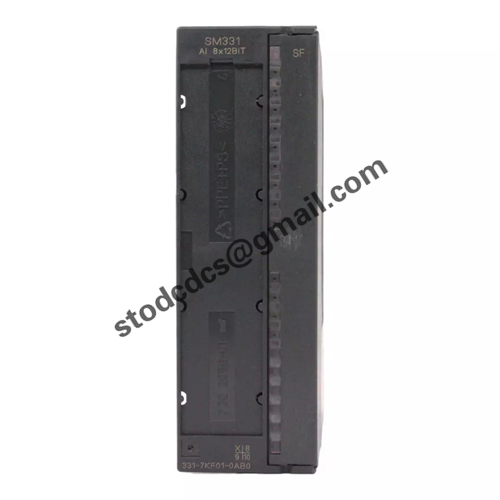

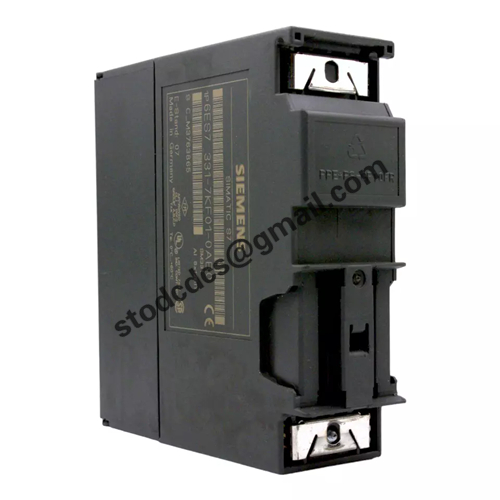

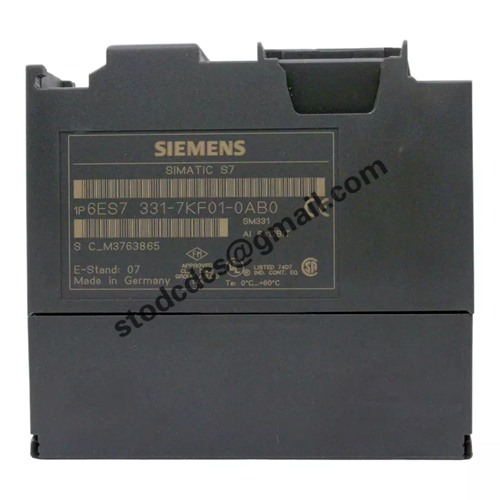

Siemens 6ES7331-7KF01-0AB0 is an analog input module in the Siemens SIMATIC S7 series, belonging to the S7-300 PLC system.
Analog Input: This module provides 8 analog input channels, which can be used to connect various sensors (such as temperature sensors, pressure sensors, etc.).
Input signal type: Supports standard voltage and current signals, including:
Voltage signal: 0-10V
Current signal: 4-20mA
Resolution: 12 bit resolution ensures accurate data collection.
Configuration flexibility: Through STEP 7 software, input types and ranges can be flexibly configured to meet different industrial application requirements.
Technical parameters:
Power supply voltage: 24V DC
Number of input channels: 8 channels (single ended)
Signal type: voltage or current input
Input range:
Current: 4-20mA
Voltage: 0-10V
Accuracy: ± 0.1% of full scale
Isolation: There is electrical isolation between channels and between power sources and signals.
Installation method: DIN rail installation, suitable for standard S7-300 PLC rack.

Related pictures:
