Zygo 8010-0105-02 ZMI-501 Channel Isolation Board

Product manual:

Zygo 8010-0105-02 ZMI-501 channel isolation board is a high-performance channel isolation hardware provided by Zygo, mainly used to support its interferometer systems. This type of module is commonly used in precision measurement and motion control applications, providing signal isolation and data stability to improve the reliability and accuracy of measurement systems.
Product features:
High performance signal isolation:
Provide electrical isolation between channels to prevent noise and interference from affecting the stability of interferometric measurement signals.
Reduce errors caused by electrical interference in measurement signals.
Strong compatibility:
Specially designed for Zygo's ZMI series laser interferometers (such as the ZMI-501 system) to ensure seamless integration with the system.
High reliability:
Industrial grade design, capable of stable operation in complex environments.
Provide current overload and short circuit protection to extend module lifespan.
Modular design:
Easy to install, replace, and maintain, reducing system downtime.
Technical parameters:
Model: 8010-0105-02
Series: ZMI-501
Function: Channel signal isolation, used for data integrity and interference suppression.
Compatible devices: Zygo ZMI series interferometers and related motion control systems.
Input/Output Channels: Supports multi-channel input and output.
Electrical isolation level: high isolation level, ensuring the independence and accuracy of measurement signals.
Work environment:
Temperature range: usually within the industrial standard range (recommended to refer to specific manuals).
Seismic resistance: suitable for laboratory or industrial scenarios with high-precision measurement.

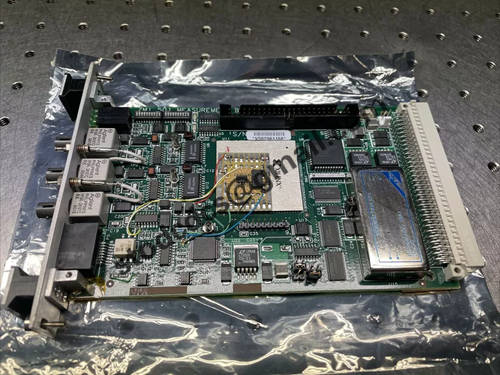

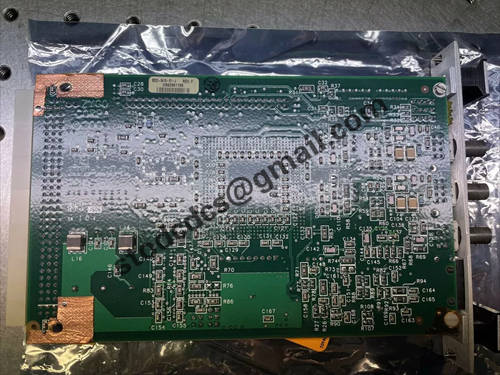

Product details picture:
