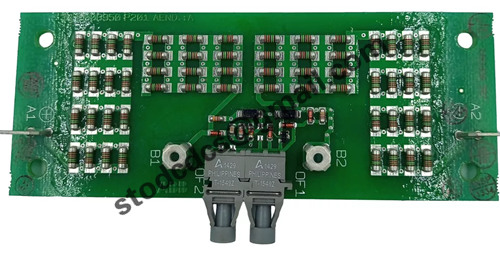

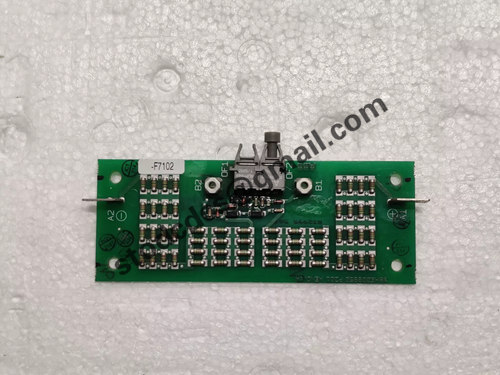

XVC724BE101 3BHE0090017R0102 circuit board

Brand:ABB
Model:XVC724BE101 3BHE009017R0102
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

XVC724BE101 3BHE0090017R0102 circuit board

Product manual:

XVC724BE101 3BHE0090017R0102 Circuit Board Technical Description
1. Basic attributes
Product type: Inverter main control circuit board

Applicable series: ABB ACS800/ACS880 medium voltage frequency converter

Core functions: motor control, system monitoring, communication management

2. Hardware configuration
Main processor: dual core DSP+FPGA architecture

Memory capacity: 16MB program storage+2MB running memory

Communication interface:

2-channel RS485 (Modbus protocol)

1-channel fiber optic synchronous interface

Optional Profibus extension

Sampling accuracy: 16 bit ADC, sampling rate of 100ksps

3. Electrical parameters
Technical indicators for parameter items
Working voltage 24VDC ± 10%
Power consumption ≤ 15W
Working temperature -25 ℃~+70 ℃
Protection level IP20
4. Functional characteristics
Support DTC direct torque control algorithm

Real time monitoring of 12 analog inputs

Equipped with comprehensive fault protection functions:

Overcurrent protection (response time<2 μ s)

Overvoltage protection

under voltage protection

temperature protection

5. Installation requirements
Original fixed bracket must be used

Installation torque: 0.6 ± 0.1Nm

Minimum maintenance space: 50mm in front and 50mm in back
