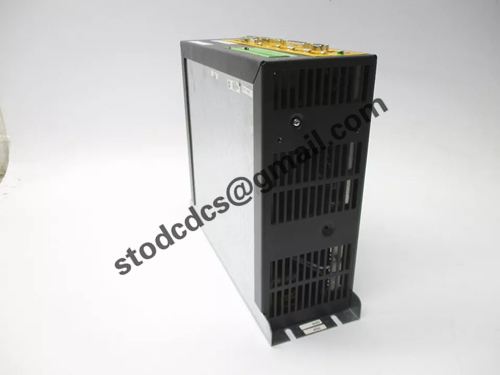

Woodward 3522-1004 servo drive

Brand:Woodward
Model:3522-1004
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Woodward 3522-1004 servo drive

Product manual:

Product Overview
Model: 3522-1004
Brand: Woodward
Type: Servo Drive
Function: Provide closed-loop control signals for driving servo valves or other precision actuators.
Main functions and features
High precision closed-loop control
Provide stable closed-loop feedback control for positioning or speed adjustment of high-precision servo systems.
Supports multiple control modes, including position control, speed control, and force control.
Compatible with multiple input signals
Support analog signal input (such as voltage or current) to flexibly adapt to different system requirements.
Compatible with various sensors such as potentiometers, differential transformers, etc., used for feedback signal acquisition.
High dynamic response
The driver design has fast dynamic response capability and can adapt to high-speed changing control requirements.
Especially suitable for scenarios that require precise positioning and high dynamic performance.
Overload and fault protection
Built in overcurrent, overvoltage, and short-circuit protection functions enhance the safety and reliability of equipment operation.
Support alarm output for easy system fault diagnosis.
Durability and environmental adaptability
Industrial grade design, adaptable to various harsh environments, ensuring stable operation under extreme temperature and vibration conditions.
technical specifications
Input voltage:
Supports standard industrial voltage range (specific voltage values depend on module configuration).
Output type:
Electric current drive: used to control servo valves or actuators.
Control mode:
Analog signal control (voltage or current input).
Support closed-loop feedback.
Dynamic performance:
High bandwidth, suitable for high dynamic applications.
Protection function:
overload protection
Short circuit protection
Temperature monitoring
Installation method:
Supports panel or rack installation.
Environmental adaptability:
Temperature range: -30 ° C to 65 ° C
Protection level: Suitable for industrial site use.
