VIBRO-METER VM600 MPC4 200-510-064-034 200-610-100-034 Mechanical Protection Card

Product manual:

The VIBRO-METER VM600 MPC4 mechanical protection card (model: 200-510-064-034/200-610-100-034) is an important component of the VM600 system under Vibro Meter (now Meggitt), designed to provide high-precision vibration and status monitoring for rotating machinery and critical equipment. This card is suitable for real-time monitoring and protection of the operation status of industrial equipment, and is widely used in high demand fields such as aviation, power generation, oil and gas, and chemical industry.

Product Overview
Brand and Model:

Brand: Vibro Meter/Meggitt
Model: MPC4 (200-510-064-034) and IOC4T (200-610-100-034)
Equipment type:

Mechanical protection card (vibration monitoring and protection module)
Adaptation system:

VM600 series mechanical monitoring and protection system
major function
Vibration and condition monitoring:

Real time monitoring of mechanical vibration, shaft displacement, speed and other parameters to prevent equipment failures.
Mechanical protection function:

When an abnormal state is detected (such as vibration exceeding the limit), an alarm or protective action (such as emergency stop) is triggered.
Multi channel support:

Support multi-channel data collection, can simultaneously monitor multiple points, and improve monitoring coverage.
High precision and real-time performance:

Provide high-resolution measurement and real-time response to ensure the safety of critical equipment.
Data Communication and Integration:

Support communication with the upper computer and DCS/PLC system for centralized management and analysis.
technical specifications
Detailed parameter information
Input type: vibration signal, shaft displacement, speed sensor, speed sensor, etc
The number of channels supports multi-channel input (usually 4-8 channels)
Signal output analog signal (4-20 mA), relay alarm, digital signal (MODBUS, TCP/IP, etc.)
High measurement accuracy, suitable for monitoring small vibrations
Real time response time, millisecond level
Communication interface standard industrial interface (supporting MODBUS or Ethernet)
Power requirement 24V DC or provided by the system
Working temperature range -25 ° C to+70 ° C
Industrial standard for protection level, meeting the requirements of harsh environments

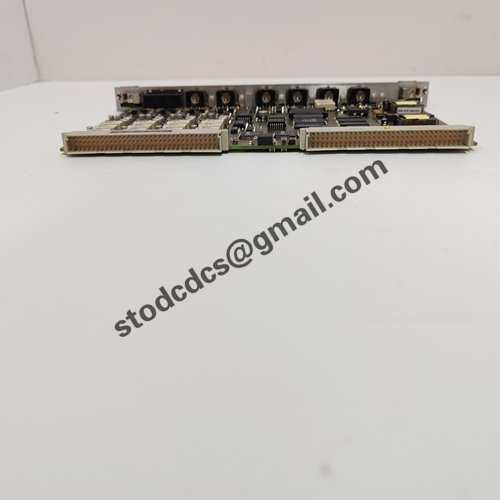

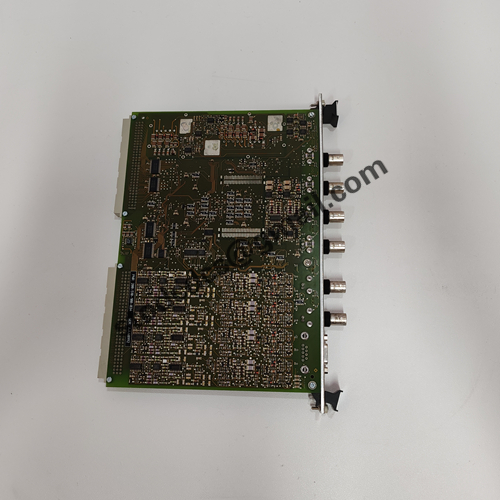

Product details picture:
