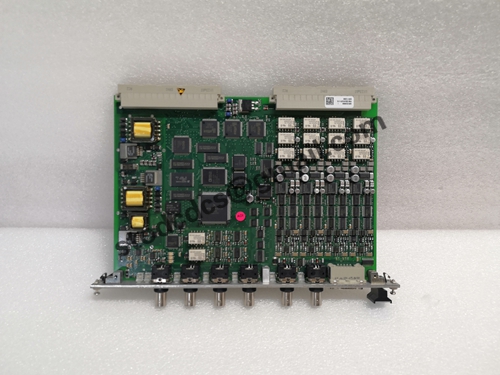

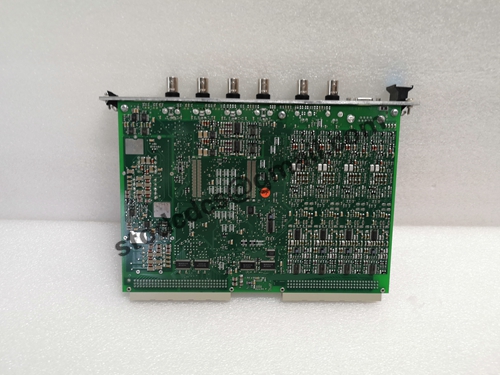

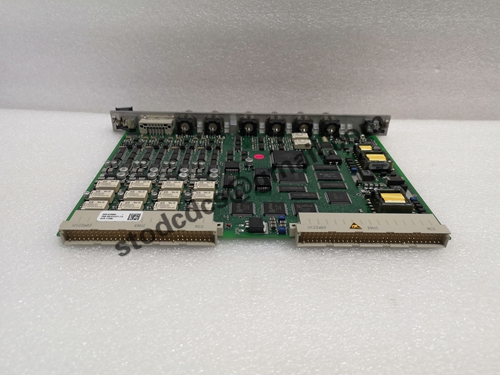

VIBRO-METER 200-510-071-113 Machine protection card

Channel configuration: The MPC4 Mechanical protection card provides 4 dynamic channels and 2 auxiliary channels, each dynamic channel has 2 processing outputs, and each speed channel has 1 processing output. This configuration enables it to process and monitor multiple dynamic signal inputs. Such as acceleration, velocity and displacement.
Alarm and diagnostic functions: The card is equipped with 4 user-configurable alarm relays and 1 common circuit fault relay. In addition, it has system-wide safety line Diagnostics (BIST) function. All relevant protection system relays and analog outputs can be driven to a safe state when required.
Measurement and monitoring: The MPC4 Mechanical protection card is capable of measuring and monitoring four dynamic signal inputs and up to two speed inputs. These dynamic signal inputs are fully programmable. It can accept signals of various representations, such as acceleration, velocity, and displacement (approach).
Digital processing: This card provides digital filtering. Integration or differentiation (if desired), rectification (effective, mean, true peak or true value), peak-to-peak. Sequence tracking (amplitude and phase) and measurement of sensor target gap and other digital processing functions.
