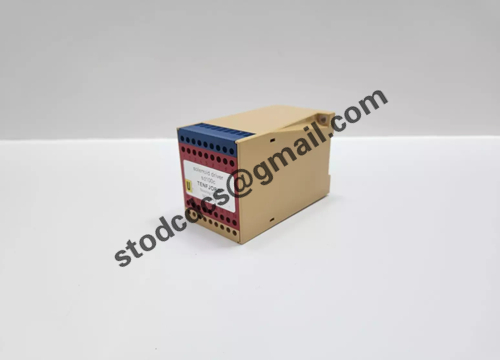

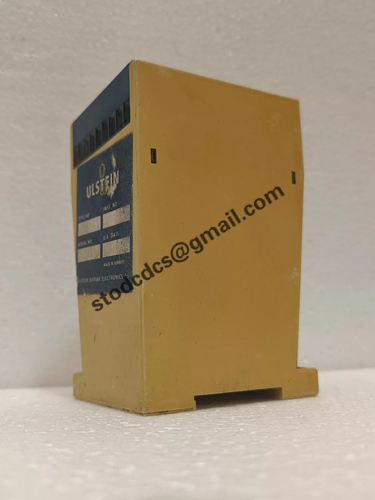

Ulstein Tenfjord 5801-SD100C Electromagnetic Valve Driven Steering Device

Brand: Ulstein Tenfjord
Model:5801-SD100C
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Ulstein Tenfjord 5801-SD100C Electromagnetic Valve Driven Steering Device

Product manual:

Ulstein Tenfjord 5801-SD100C electromagnetic valve driven steering device is a high-performance ship steering system component designed to meet the precise and reliable steering needs of marine vessels under various operating conditions. The following is the detailed information of the device:
Product Overview
Function description:
As an important component of the electro-hydraulic steering system, the precise operation of the ship's servo is achieved by controlling the solenoid valve to drive the hydraulic power device.
It provides high sensitivity response capability and is suitable for large merchant ships, cruise ships, offshore factory ship and other ships.
Design features:
Electromagnetic valve drive: using electrical signals to control hydraulic flow and pressure, ensuring fast response and high precision of steering actions.
Modular structure: easy to install and maintain, suitable for complex ship engineering design.
Durability: Made of high-strength materials and corrosion-resistant coatings, suitable for harsh marine environments.
technical parameter
Parameter specification description
Model 5801-SD100C
The working voltage is usually 24V DC (specific models may support different voltages)
Driving method: Electromagnetic valve drives hydraulic control
The specific value of the flow range depends on the system design
Working temperature range -20 ° C to+70 ° C
Pressure range for high-pressure hydraulic systems, typically up to 250 bar or higher
Fast response time, suitable for dynamic steering operations
Control signal interface digital or analog input, supporting integration with ship control system
Corrosion resistant steel and composite materials
Protection level IP66 or higher (specific model confirmed)
