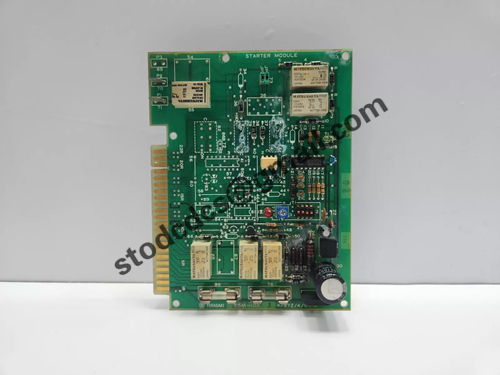

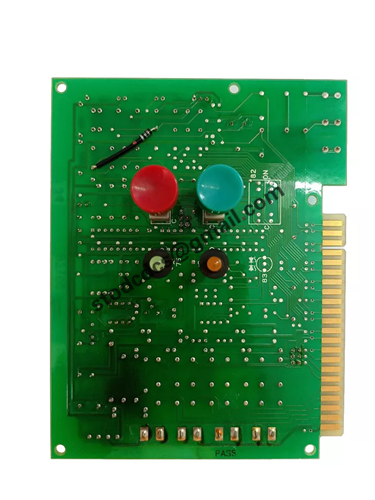

TERASAKI ESM-103J Starter Module

Brand:TERASAKI
Model:ESM-103J
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

TERASAKI ESM-103J Starter Module

Product manual:

Product Overview
Model: ESM-103J
Brand: Terasaki
Type: Starter Module
Main functions: motor start and stop control, overload protection, short circuit protection, and operation status monitoring.
main features
Efficient start-up and control:
Provide reliable control for motor starting, running, and stopping.
Support direct startup or soft startup through other components.
Comprehensive protection function:
Overload protection: Monitor the operating current of the motor to avoid overload damage.
Short circuit protection: Quickly detect and isolate short circuit faults.
Voltage protection: prevent voltage fluctuations from damaging the motor.
Modular design:
Compact structure, can be flexibly integrated into electrical control cabinets or distribution systems.
Supports hot swapping, easy maintenance, and reduces downtime.
Status indication and diagnosis:
Equipped with LED or digital display screen, real-time display of motor operation status and fault information.
Support remote monitoring and control.
High reliability:
The design complies with industrial environmental standards and has the ability to resist vibration and electromagnetic interference.
Long working life, suitable for high-frequency start-up and operation scenarios.
technical parameter
Power supply voltage: AC 380V/400V, 50/60Hz
Rated current: Suitable for small and medium-sized motors, the specific current range needs to be confirmed according to the configuration.
Startup mode: Supports direct startup, soft startup needs to be used in conjunction with relevant modules.
Protection function:
Overload protection range: 1-10 times rated current (adjustable).
Short circuit protection triggering time:<10ms.
Control interface: Control can be achieved through digital or analog signal interfaces.
Working temperature range: -10 ° C to 50 ° C
Installation method: Standard rail or panel installation
