SSI232.1 (029.365083) Interface Template

Product manual:

SSI232.1 (part number: 029.365083) is an interface module produced by Emerson,
Intended to achieve communication with encoders and other devices in industrial automation systems.
This module is typically used to receive synchronous serial interface (SSI) signals from rotary encoders,
To obtain parameters such as position and speed.
Main features:
Multi channel input: Provides multiple input channels and can simultaneously receive multiple SSI signal sources,
Improve the flexibility and scalability of the system.
High data transmission rate: Supports high-speed data transmission to ensure real-time acquisition of encoder data and meet high-performance application requirements.
Flexible configuration options: Users can configure data formats according to their actual needs
Parameters such as transmission rate, suitable for different application scenarios.
Reliable industrial design: adopting robust industrial grade design,
Ensure stable operation in harsh environments and adapt to the needs of industrial sites.
Application areas:
Position and velocity monitoring: used in conjunction with a rotary encoder,
Real time monitoring of the position information and speed of motors or mechanical components.
Automated control system: In automated production lines, encoder data is obtained to achieve precise control and feedback.
Technical specifications:
Input type: Supports SSI protocol encoder input, compatible with multiple encoder models.
Data format: Supports multiple data format configurations to meet the data transmission requirements of different encoders.
Power requirements: Usually powered by a 24V DC power supply, please refer to the product manual for details.
Working temperature range: Suitable for ambient temperatures ranging from -20 ° C to+60 ° C, ensuring stable operation in various industrial environments.
Installation method: DIN rail installation facilitates installation and maintenance in the control cabinet.

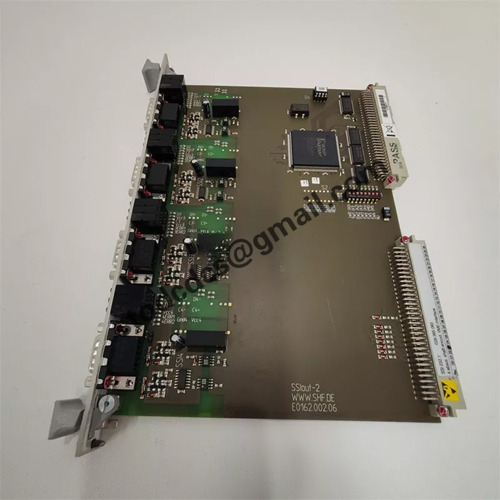

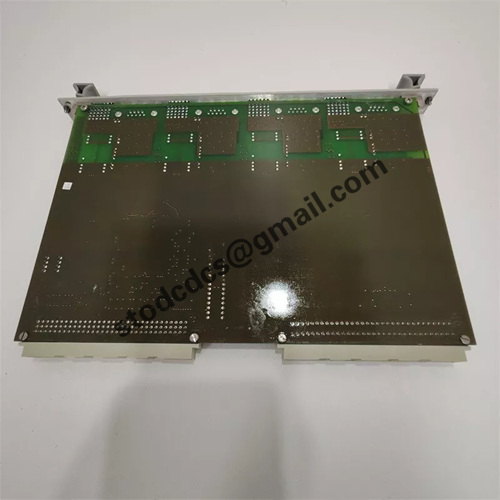

Product details picture:
