SOLAHD SDN20-24-100C Output Switching Power Supply

Product manual:

SOLAHD SDN20-24-100C is an output switching power supply from SOLAHD (now part of Schneider Electric). This type of power module is commonly used in industrial automation systems to provide stable DC power to support various control and equipment requirements.
Main features:
Efficient Switching Power Supply:
Switching power supply technology: Adopting switching power supply technology, it has the characteristics of high efficiency and low power consumption, and compared with linear power supply, it has more energy-saving advantages.
Efficient Conversion: Provides stable power conversion, reduces energy loss and heat generation.
Electrical specifications:
Input voltage: Typically supports a wide range of input voltages, such as 85-264V AC.
Output voltage: Provides 24V DC output voltage, suitable for powering various industrial equipment and control systems.
Output current: The maximum output current is 100A, which meets the power supply requirements of high loads.
Protection function:
Overload protection: equipped with overload protection function to prevent power supply from being damaged due to excessive load.
Short circuit protection: Built in short circuit protection to prevent damage to the power supply and system caused by short circuits.
Over temperature protection: Provides over temperature protection function to prevent overheating from affecting the normal operation of the power supply.
Modular design:
Compact size: Designed to be compact and easy to install in control panels or cabinets, saving space.
DIN rail installation: Supports DIN rail installation, complies with industry standards, and is easy to integrate into existing systems.
Reliability and stability:
High reliability: designed for industrial environments, with high reliability and stability, supporting long-term operation.
Environmental adaptability: Adapt to various industrial environmental conditions, including temperature and humidity.
Technical specifications:
Model: SDN20-24-100C
Input voltage range: 85-264V AC
Output voltage: 24V DC
Output current: 100A
Power: 2400W (24V × 100A)
Installation method: DIN rail installation
Size: Compact design, suitable for standard cabinet or panel installation

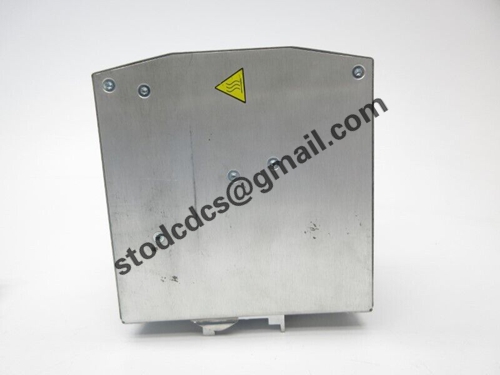

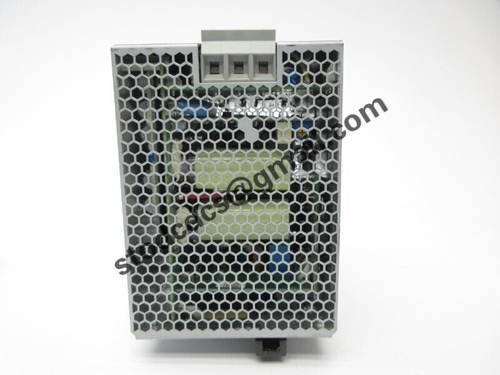

Product details picture:
