SIEMENS 6SC9811-4CH00 Control Board

Product manual:

Siemens 6SC9811-4CH00 is a control board in the Siemens SIMODRIVE series. This control board is responsible for executing and managing various control tasks of the servo drive system.
Main functions and features:
Control function:
The 6SC9811-4CH00 control board is used to perform the core control tasks of the servo drive system, including motor start, stop, acceleration, deceleration, and speed control.
Supports precise control of position and speed, and adjusts the motor's motion in real-time by processing feedback signals from encoders and other sensors.
Signal processing:
Process input signals and perform real-time analysis to ensure high precision and response speed of the servo system.
Equipped with signal filtering and error compensation functions to improve the stability and accuracy of the system.
Communication interface:
Equipped with communication interfaces for data exchange and control with other system components.
Support standard industrial communication protocols such as PROFIBUS, CANopen, EtherCAT, etc. to ensure compatibility with other devices.
Programming and Configuration:
Provide flexible programming and configuration options, allowing users to customize settings according to specific application needs.
Supports multiple programming languages and configuration tools, making it convenient for users to adjust and optimize the system.
Protection function:
Contains protection functions such as overcurrent, overvoltage, and overtemperature to prevent damage to the system in abnormal situations.
Provide fault diagnosis and alarm functions, capable of real-time monitoring of system status and reporting potential issues.
Modular design:
As part of the SIMODRIVE series, the 6SC9811-4CH00 can be combined with other system modules (such as power modules, drive modules, etc.) to build a complete servo drive system.
Modular design allows for flexible configuration and expansion based on specific application requirements.
High performance:
The design emphasizes high performance and reliability, and can operate stably in various industrial environments.
Support high-speed motion control and precise positioning to meet complex application requirements.

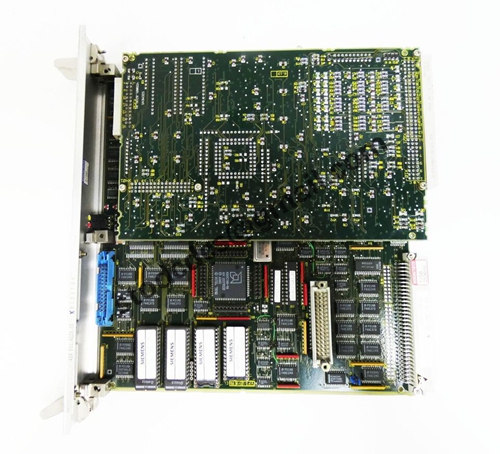

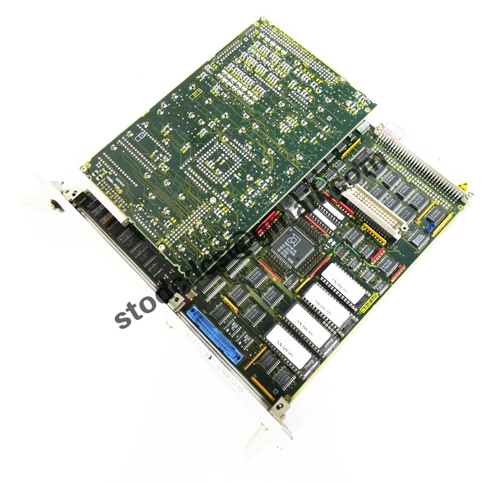

Product details picture:
