Siemens 6SC9811-2BE50 Counter Module

Product manual:

Main functions and features:
Counting function:
The 6SC9811-2BE50 counter module is responsible for high-precision counting of input signals, which typically come from position sensors or encoders.
Capable of real-time calculation of motor rotation angle, speed, and other key parameters.
Position measurement:
Provide accurate position measurement function, supporting precise positioning and tracking in servo systems.
Support multiple encoder interfaces to ensure compatibility with various position sensors.
High speed sampling:
Support high-speed signal sampling to achieve fast response and real-time control.
Capable of handling rapidly changing signals, suitable for high dynamic application scenarios.
Data processing:
Process and convert the counting data into control signals required by the servo system.
Provide data analysis and reporting functions to help optimize system performance.
Communication interface:
Equipped with multiple communication interfaces for data exchange and control with other system components.
Support standard industrial communication protocols such as PROFIBUS, CANopen, EtherCAT, etc. to ensure compatibility with other devices.
Protection function:
Contains protection functions such as overcurrent, overvoltage, and overtemperature to prevent module damage in abnormal situations.
Provide fault diagnosis and alarm functions, capable of real-time monitoring of module status and reporting potential issues.
Modular design:
As part of the SIMODRIVE series, the 6SC9811-2BE50 can be combined with other system modules such as drive modules, power modules, control modules, etc. to build a complete servo drive system.
Modular design enables flexible configuration and expansion according to specific application requirements.

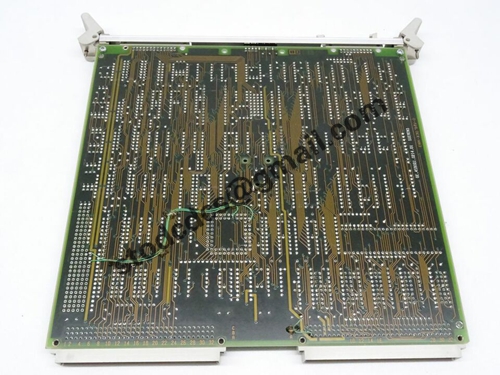

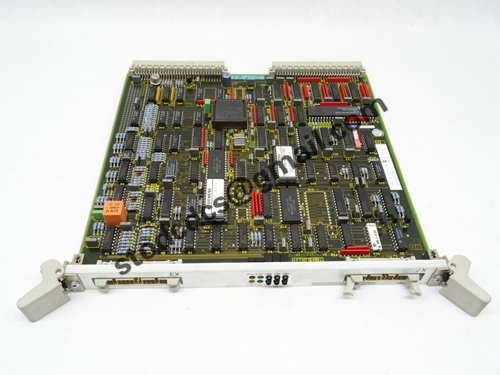

Product details picture:
