Siemens 6SC9711-0AL0 Printed Circuit Board

Product manual:

Main functions and features:
Signal processing:
Data processing: The 6SC9711-0AL0 PCB is responsible for processing various signals in the servo system, including current, speed, position, and other signals.
Signal conversion: Convert analog signals to digital signals, or vice versa, convert digital signals to analog signals for further processing and control.
Control function:
Circuit control: The circuits on the control board are used to manage and regulate the operating status of servo drives, such as start, stop, acceleration, deceleration, etc.
Adjusting parameters: Supports adjusting system parameters such as gain, feedback values, etc. to optimize system performance.
Interface and Connection:
Electrical Interface: Equipped with various electrical interfaces for connecting other system components such as servo motors, drivers, controllers, etc.
Communication interface: including standard communication interfaces, used for data exchange and integration with other modules.
Protection function:
Overcurrent protection: prevents circuit damage caused by excessive current.
Overvoltage protection: to avoid damage to the circuit caused by high voltage.
Short circuit protection: protects the circuit from the effects of short circuit faults.
Overheating protection: prevent the circuit from overheating and ensure that it operates at a safe temperature.
Modular design:
Compatibility: As part of the SIMODRIVE series, the 6SC9711-0AL0 can be combined with other system modules (such as power modules, drive modules, etc.) to build a complete servo drive system.
Flexible configuration: Supports flexible configuration and expansion to meet the needs of different applications.
High performance:
High stability: The design emphasizes high stability and reliability to ensure the normal operation of the circuit board in various industrial environments.
Precise control: Provides precise signal processing and control functions to optimize the performance of servo systems.

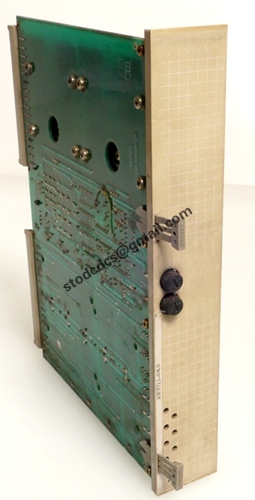

Product details picture:
