Siemens 6SC6501-0AB02 power unit module

Product manual:

Main functions and features:
Power supply:
Power Conversion: The module is capable of converting input power into power specifications suitable for the servo system, including voltage and current, to ensure stable operation of the system.
Modular design:
Compatibility: As part of the SIMODRIVE series, this module can be used in conjunction with other system modules (such as control modules, drive modules, etc.) to build a complete servo drive system.
Flexible configuration: Modular design allows for flexible configuration and expansion according to different application requirements.
Protection function:
Overcurrent protection: prevents module or system damage caused by excessive current.
Overvoltage protection: to prevent damage to the system caused by high voltage.
Short circuit protection: protects the module from the impact of short circuit faults.
Overheating protection: prevents the module from overheating under high load conditions, ensuring its safe and stable operation.
High efficiency:
Power density: Provides high power density to support the operation of servo systems under high load conditions.
Reliability: The design emphasizes high reliability and can work stably in various industrial environments.
Cooling system:
Cooling design: Equipped with an effective cooling system, such as heat sinks or fans, to maintain the normal operating temperature of the module and prevent overheating.
Interface and Connection:
Electrical interface: Equipped with standard electrical interfaces for easy connection and integration with other system components.
Communication interface: may include communication interfaces used for data exchange and coordination with other modules in the system.

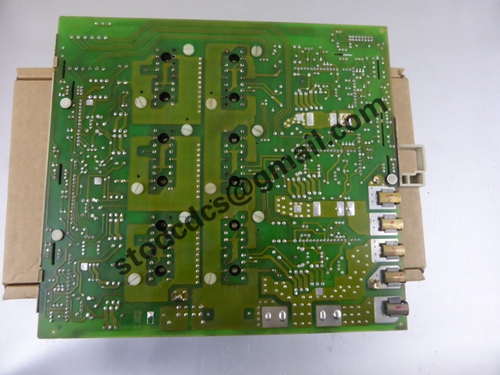

Product details picture:
