Siemens 6SC6500-0UB02 Digital Display Board

Product manual:

Main functions and features:
Real time data display:
Display function: The 6SC6500-0UB02 display board can display various data of the servo system in real time, such as current, voltage, speed, position, etc. Through these data, operators can monitor the working status of the system.
Status indication: Provide visual feedback on the system's operating status, such as running, stopping, fault, and other status indications.
User interface:
Operating Interface: Equipped with a user interface that allows operators to set and adjust settings through buttons or touch screens (if supported).
Parameter setting: Provides a convenient way to set and adjust the parameters of the servo system, such as speed limit, acceleration/deceleration time, position setting, etc.
Fault diagnosis:
Alarm function: When the system encounters a malfunction or abnormal situation, the digital display panel can display alarm information to help operators quickly identify the problem.
Fault recording: may include fault recording function, which records fault information for subsequent analysis and maintenance.
Modular design:
Compatibility: As part of the SIMODRIVE series, 6SC6500-0UB02 can be used in conjunction with other system modules such as drivers, controllers, power modules, etc.
Flexible configuration: It can be flexibly configured and integrated with other components according to specific application requirements.
Interface and Connection:
Communication Interface: Provides standard communication interfaces for data exchange and integration with other modules in the system.
Electrical interface: including power and signal interfaces, ensuring stable operation and information transmission.
High performance:
High precision display: The design emphasizes high precision and reliability to ensure the accuracy and stability of displayed data.
Easy to operate: user-friendly interface design, intuitive operation, convenient for users to monitor and adjust the system.

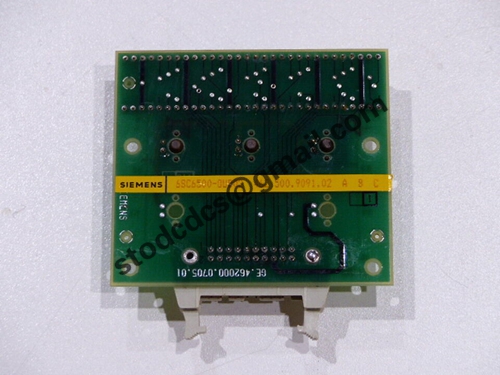

Product details picture:
