SIEMENS 6SC6500-0BC01 Circuit Board Module

Product manual:

Main functions and features:
Control function:
The 6SC6500-0BC01 circuit board module is typically responsible for processing control signals and converting them into control instructions required by the drive system.
Support precise control of servo motors, including position, speed, and torque control.
Signal processing:
Process signals from sensors and feedback devices, converting them into data required by the control system.
Realize signal amplification, filtering, and adjustment to ensure the accuracy and stability of control signals.
Interface and Communication:
Equipped with multiple interfaces and communication protocols for data exchange and control with other system components.
May support standard industrial communication protocols such as PROFIBUS, CANopen, EtherCAT, etc.
Protection function:
Usually equipped with overcurrent, overvoltage, overtemperature and other protection functions to prevent circuit boards and systems from being damaged in abnormal situations.
Including fault diagnosis function, it can monitor module status in real time and report potential problems.
Cooling management:
It may be equipped with heat dissipation devices, such as heat sinks or fans, to ensure effective heat dissipation during high load operation and maintain system stability.

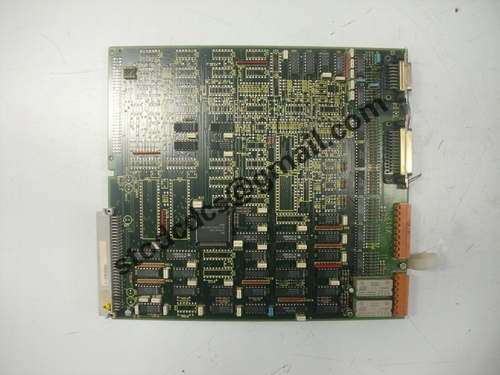

Product details picture:
