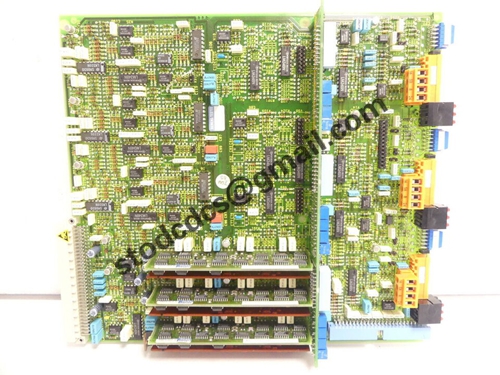

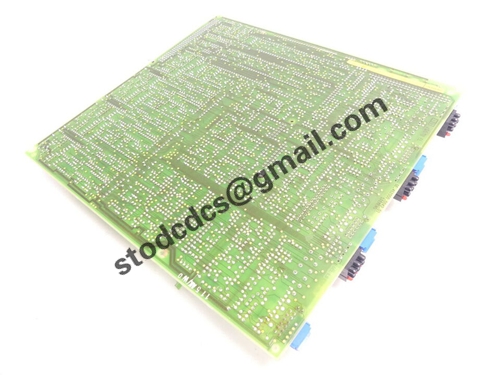

Siemens 6SC6100-0SA21 driver circuit board

Brand:Siemens
Model:6SC6100-0SA21
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6SC6100-0SA21 driver circuit board

Product manual:

Main functions and features:
Motor drive and control:
The 6SC6100-0SA21 circuit board is used to control servo motors and spindle motors, providing precise speed, position, and torque control.
Support closed-loop control, adjust the output by receiving and processing feedback signals to ensure the accuracy and stability of motor operation.
Integrated Circuit Design:
The circuit board design is compact and modular, capable of adapting to different system requirements and seamlessly integrating with other driver components.
High efficiency and reliability:
This circuit board has efficient power conversion capability, ensuring stable driving power supply for the motor under various operating conditions.
The design emphasizes reliability, enabling long-term stable operation in harsh industrial environments and resisting electromagnetic interference.
Protection function:
The circuit board also has a self diagnostic function, which can quickly sound an alarm when a fault occurs, helping users quickly locate and solve problems.
Modularity and compatibility:
As part of the SIMODRIVE series, this circuit board can be integrated with other modular units such as control modules and power modules to form a complete drive system.
It is highly compatible with other Siemens automation equipment and systems, making it easy to integrate and expand.
Application scenarios:
Numerical Control Machine Tool: Used to drive and control spindle motors and feed motors, ensuring accuracy and dynamic response during the machining process.
Industrial robots: servo motors that drive various joints of the robot to achieve complex motion control.
Automated production line: used to drive various actuators in the production line, ensuring efficient and continuous production operations.
Technical specifications (partial):
Input voltage: usually DC power supply, the specific voltage range is determined according to the system configuration.
Output current/voltage: Provide appropriate driving current and voltage for servo motors or spindle motors.
