Siemens 6ESP242-1AU11 Analog Input Module

Product manual:

Main features:
Model: 6ESP242-1AU11
Series: SIMATIC S5 Series
Module type: Analog Input Module
Main functions:
Analog signal conversion: Convert analog signals (such as voltage and current) emitted by external sensors or instruments into digital signals for PLC processing.
Multi channel input: usually supports multiple analog input channels, which can simultaneously collect data from multiple signal sources.
High precision: Provides high-precision analog-to-digital conversion to ensure the accuracy of data acquisition.
Real time data collection: capable of collecting and processing data in real-time, suitable for dynamically changing measurement tasks.
Measurement system: used to collect analog signals from sensors such as temperature sensors, pressure sensors, flow sensors, etc.
Data monitoring and alarm: Real time monitoring of equipment and system status, conducting data analysis and alarm processing.
Advantages:
High precision data collection: Provide accurate data collection to ensure the reliability of system control.
Strong flexibility: Supports multiple analog signal inputs to adapt to different measurement needs.
Integration with PLC: Seamless integration with SIMATIC S5 series PLC simplifies system design and maintenance work.
Technical specifications:
Input channels: Usually 4 analog input channels are provided (the specific number depends on the module design).
Input signal type: Supports multiple signal types, such as voltage (0-10V) or current (4-20mA), depending on the module configuration.
Conversion accuracy: typically provides 12 bit or higher accuracy.
Power requirements: The module is powered by the system bus or an independent power supply. Specific requirements can be found in the system configuration manual.
Data transmission: Data transmission is achieved through communication interface with PLC to ensure real-time processing and transmission of data.

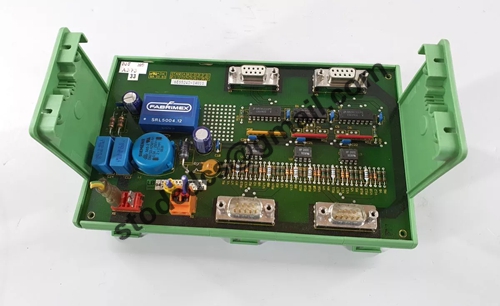

Product details picture:
