Siemens 6ESP242-1AA32 Counter Module

Product manual:

Siemens 6ESP242-1AA32 is a high-speed counter module in the S5 series PLC, which is used to count the pulses of input signals and supports high-speed signal processing and counting operations. It is widely used in automation systems, especially in application scenarios that require counting and measurement, such as production lines, packaging equipment, conveyor systems, etc.
Main features:
High speed counting function:
Counting mode: Supports multiple counting modes, such as increasing, decreasing, bidirectional counting, etc.
Counting frequency: Suitable for processing high-speed signal inputs and supporting precise counting of high-frequency pulses.
Input/output interface:
Input Channel: Supports multiple high-speed digital inputs, typically used to connect devices such as sensors and encoders that generate pulse signals.
Output channel: The module can output counting results or control signals to other devices, such as the central processing unit of the PLC or external actuators.
Counting range:
Supports a counting range of 32 bits or higher, capable of handling larger count values, suitable for long-term operation and complex counting applications.
Programmability:
Programming: Using Siemens STEP 5 software for programming and configuration, it is possible to customize the working mode, starting value, upper and lower limits, and other parameters of the counter.
Parameter adjustment: The preset values and thresholds of the counter can be adjusted according to application requirements, flexibly adapting to different counting applications.
Real time processing capability:
Has fast response capability, can process high-frequency pulse input in real time, ensuring counting accuracy and control synchronization.
Environmental adaptability:
Design: Specially designed for industrial environments, with good anti-interference ability, suitable for complex electromagnetic environments in industrial automation.
Installation method:
Modular design: suitable for installation in Siemens S5 series I/O racks, supporting integration with other modules and central processing units.

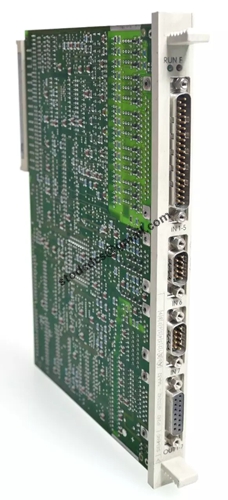

Product details picture:
