Siemens 6ESP241-1AA12 Printed Circuit Board

Product manual:

Siemens 6ESP241-1AA12 is a printed circuit board (PCB) module in the SIMATIC S5 series, belonging to the I/O module series of the S5-100U PLC system. It is mainly used to provide input signal processing capabilities, connect external devices and control systems.
Main features:
Module type: Digital input module (PCB, printed circuit board)
Series: SIMATIC S5-100U
Input type: Digital input, used to receive signals from external switches or sensors.
Number of input channels: Usually supports multiple input channels, the specific number needs to refer to the detailed technical specifications.
Electrical interface: Connect to the system bus through the interface on the PCB to ensure communication with the CPU module.
Voltage level: Designed for specific input voltage levels, typically 24V DC or higher.
Function and purpose:
Signal acquisition: Receive digital input signals from external devices such as sensors, switches, buttons, etc., and transmit these signals to the PLC system for processing.
System Integration: As an I/O module in the S5-100U system, it helps integrate external devices with automation control systems to achieve control and monitoring.
Modular design: System functions can be flexibly configured by combining different I/O modules according to specific application requirements.

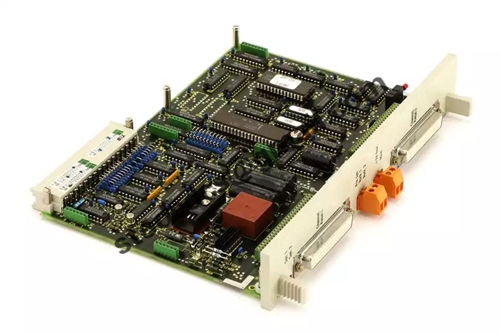

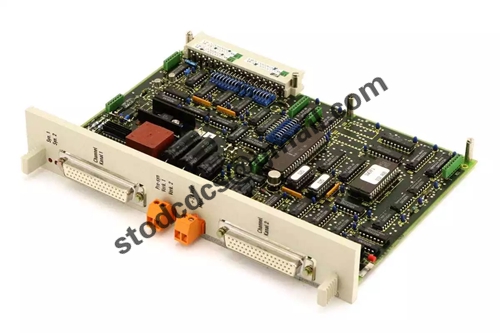

Product details picture:
