Siemens 6ES7332-5HF00-0AB0 Analog Output Module

Product manual:

Main features:
Output channels: Provides 8 analog output channels, which can simultaneously output multiple analog signals, suitable for multi-point control applications.
Signal type:
Voltage output: 0-10V, 1-5V
Current output: 0-20mA, 4-20mA
High resolution: 16 bit resolution ensures high accuracy of the output signal, suitable for applications that require high precision.
Electrical isolation: Each channel has electrical isolation between itself and the system, which helps prevent interference and improve system stability.
Diagnostic function: With self diagnostic ability, it can detect output faults (such as short circuits, open circuits) and issue alarms to help users quickly locate problems.
Overload protection: The module has overload protection function to avoid damage caused by excessive current.
Technical parameters:
Product Code: 6ES7332-5HF00-0AB0
Number of output channels: 8 analog outputs
Output signal type:
Voltage: 0-10V
Current: 0-20mA, 4-20mA
Resolution: 16 bits
Load impedance:
Voltage output: ≥ 1 k Ω
Current output: ≤ 500 Ω
Accuracy: ± 0.1% of full scale
Isolation voltage: Electrical isolation between channels and between channels and systems
Power supply voltage: 24V DC
Interface type: 40 pin connector, used for connecting with the system
Installation method: DIN rail installation, suitable for S7-300 system rack
Application scenarios:
This module is widely used in various industrial automation control systems, suitable for fields such as process control, manufacturing, and energy management. Typical applications include:
Control the opening of the valve
Setting of regulator
Control of frequency converter
Advantages:
High precision output: 16 bit resolution ensures stable and accurate output signals.
Electrical isolation: improves the anti-interference ability of the system and is suitable for complex industrial environments.
Flexible configuration: Users can configure the output signal type and range according to their needs.

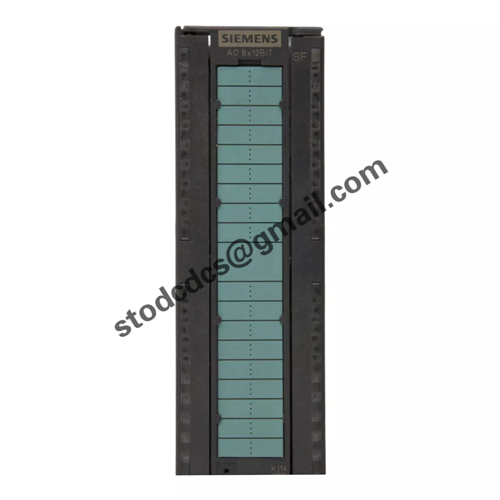

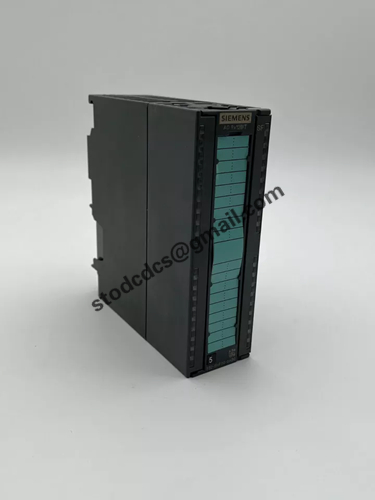

Product details picture:
