Siemens 6ES7332-5HD01-0AB0 Output Module

Product manual:

Siemens 6ES7332-5HD01-0AB0 is an analog output module in the Siemens SIMATIC S7-300 series, belonging to the SM 332 module series.
This module is used to convert digital signals in the controller into analog signals to control actuators or devices on site
. It supports multiple output channels and various output signal types, and is widely used in process control and regulation applications in industrial automation.
Main features:
Output channels: Provides 8 analog output channels, which can control multiple devices simultaneously, suitable for multi-point output control systems.
Output signal type:
Voltage output: 0-10V, 1-5V
Current output: 0-20mA, 4-20mA
High resolution: The module provides a 16 bit resolution, which enables precise and smooth analog signal output, ensuring control accuracy.
Electrical isolation: There is electrical isolation between each channel and between the channel and the control system, which enhances the system's anti-interference ability and is suitable for situations with high electromagnetic interference in industrial environments.
Overload protection: This module has overload and short circuit protection functions to prevent accidental damage, and has self diagnostic function to detect faults and issue alarm signals.
Configuration flexibility: Users can flexibly configure the output signal type and range through STEP 7 software to meet different application requirements.
Technical parameters:
Product Code: 6ES7332-5HD01-0AB0
Number of output channels: 8 analog output channels
Output signal type:
Voltage: 0-10V, 1-5V
Current: 0-20mA, 4-20mA
Resolution: 16 bits
Isolation voltage: There is isolation between channels and between channels and the system
Load impedance:
Voltage output: greater than 1k Ω
Current output: less than 500 Ω
Accuracy: ± 0.1% full scale, ensuring precise signal output
Power supply voltage: 24V DC
Interface type: 40 pin connector, used for connecting with systems and external devices
Installation method: DIN rail installation, suitable for S7-300 PLC system rack
.

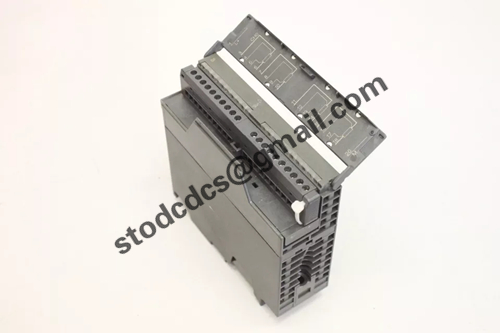

Product details picture:
