Siemens 6ES7332-5HB01-0AB0 Analog Output Module

Brand:Siemens
Model:6ES7332-5HB01-0AB0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7332-5HB01-0AB0 Analog Output Module

Product manual:

Siemens 6ES7332-5HB01-0AB0 is an analog output module in the Siemens SIMATIC S7-300 series, belonging to the SM 332 module series, mainly used for analog signal output in industrial automation systems. This module is capable of converting digital signals into analog signals for controlling actuators or devices on site.
Main features:
Output channel: This module provides 4 analog output channels, which can simultaneously provide analog output signals for multiple devices.
Signal type:
Voltage: 0-10V, 1-5V
Current: 0-20mA, 4-20mA
High resolution: The module has a 16 bit resolution to ensure the accuracy and stability of the output signal.
Isolation function: Provides electrical isolation between channels and between power sources and output signals, effectively preventing electrical interference in industrial sites and improving the system's anti-interference ability and safety.
Flexible configuration: Through STEP 7 or TIA Portal software, users can easily configure the type and range of output signals to meet different application requirements.
Diagnostic function: The module has a self diagnostic function that can detect and report fault conditions (such as short circuits, open circuits, etc.), which helps improve the reliability of the system.
Technical parameters:
Product Code: 6ES7332-5HB01-0AB0
Output channel: 4 analog outputs
Output signal type:
Voltage: 0-10V, 1-5V
Current: 0-20mA, 4-20mA
Resolution: 16 bits
Isolation voltage: Provides electrical isolation between channels and between channels and systems
Load impedance:
Voltage output: greater than 1 k Ω
Current output: less than 500 Ω
Accuracy: ± 0.1% full scale, ensuring accurate analog output signals
Power supply voltage: 24V DC
Interface type: 40 pin connector, used for connecting with systems or external devices
Installation method: Standard DIN rail installation, suitable for S7-300 PLC system rack
.

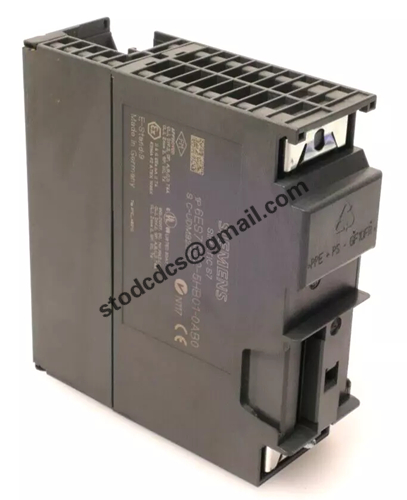

Product details picture:
