Siemens 6ES7331-1KF02-0AB0 Analog Input Module

Brand:Siemens
Model:6ES7331-1KF02-0AB0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7331-1KF02-0AB0 Analog Input Module

Product manual:

Main technical specifications:
Module type: Analog input module
Number of input channels: 8 analog inputs
Input signal type: voltage and current
Voltage input: ± 10V, 0 to 10V, 1 to 5V, 0 to 5V, etc
Current input: 0 to 20 mA, 4 to 20 mA
Resolution: 13 bits+sign bit (equivalent to 14 bit resolution)
Input impedance:
Current input: 250 ohms
Voltage input: greater than 10 M ohms
Measurement accuracy: typically ± 0.3%
Conversion time: The typical conversion time for each channel is 1.6 ms
Isolation: There is electrical isolation (500V AC) between the input channel and the backplane bus to ensure safe signal transmission
Diagnostic function: supports detecting faults such as wire breakage, short circuit, and over limit
Status indication: equipped with LED indicator lights to display channel status
Connection method: Input signal connection through a 40 pin front connector
Power consumption: 5V DC, low power consumption
Size: 125 mm x 40 mm x 120 mm (height x width x depth)
High resolution acquisition: Provides 14 bit resolution, capable of high-precision acquisition and processing of analog signals.
Fast response: With a conversion time of 1.6 ms, it is suitable for application scenarios that require high signal processing speed.
Modular design: seamlessly integrated into Siemens S7-300 series control systems, supporting system expansion.
Signal isolation: The input channel is electrically isolated from the backplane bus to ensure signal stability and anti-interference capability.
Diagnostic function: Real time monitoring of the status of each input channel and support for error detection, such as disconnection and short circuit.
Application areas:
Factory automation: Collecting and processing analog signals from on-site sensors for process control and automation equipment control.
Process control: Collecting analog signals such as temperature, pressure, and flow rate in industrial process control systems to achieve precise control.

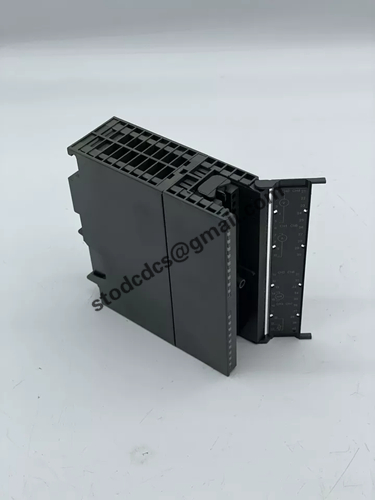

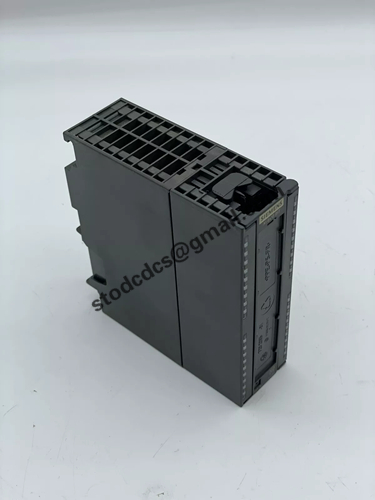

Product details picture:
