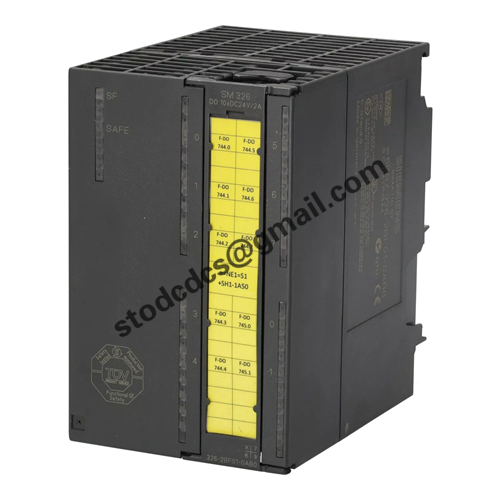

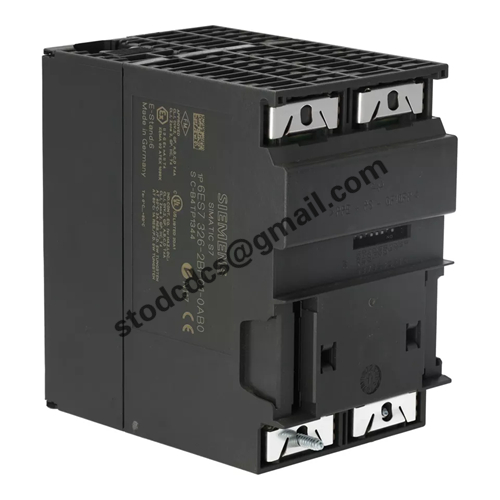

Siemens 6ES7326-2BF01-0AB0 Digital Output Module

Brand:Siemens
Model:6ES7326-2BF01-0AB0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7326-2BF01-0AB0 Digital Output Module

Product manual:

Main technical specifications:
Module type: Digital output module
Number of output channels: 16 output channels
Output type: 24V DC output
Output voltage range: 20.4V to 28.8V DC
Maximum output current: 0.5 A per output channel, total current not exceeding 4 A
Short circuit protection: equipped with short circuit protection to prevent damage caused by load faults
Overload protection: equipped with overload protection for each channel to ensure stable operation of the equipment
Output status indication: Each output channel is equipped with LED indicator lights to display the current output status
Response time: Typical response time is 0.1 ms
Diagnostic function: supports diagnostic function and can detect fault status (such as short circuit, overload, etc.)
Connection method: Use a 40 pin front connector for cable connection
Isolation voltage: The electrical isolation voltage between the module and the backplane bus is 500V AC, ensuring the electrical safety of the system
Power consumption: Low power design
Size: 125 mm x 40 mm x 120 mm (height x width x depth)
Main features:
High reliability: Each output channel is equipped with short-circuit and overload protection, which enhances the safety and service life of the module.
Fast response: The output response time is 0.1 ms, suitable for applications that require high precision and fast response.
Modular design: seamlessly integrated with other modules in the Siemens S7-300 series, allowing for flexible expansion of system functionality.
Status indication: Each output channel has LED indicator lights for real-time viewing of the channel's working status.
Process control: Implementing control over actuators or other devices in a process control system.
Machine manufacturing: suitable for signal output control of various industrial machinery, such as control relays, heaters, etc.
Building automation: used for equipment control in building management systems, such as lighting, air conditioning systems, etc.
