Siemens 6ES7326-1BK00-0AB0 Digital Input Module

Product manual:

Main technical specifications:
Module type: Digital input module
Number of input channels: 32 inputs
Input voltage range: 24V DC (20.4V to 28.8V DC)
Input signal current: The typical current for each input channel is 7 mA
Signal status indication: Each input channel has an LED indicator light to display the input status
Connection method: Wiring is done through a 40 pin front connector
Isolation voltage: The isolation voltage between the module and the backplane bus is 500V AC
Diagnostic function: Supports monitoring of input signals and error diagnosis function
Module power consumption: 5V DC, typical low power consumption
Size: 125 mm x 40 mm x 120 mm (height x width x depth)
Main features:
High density input: This module provides 32 input channels and is capable of processing large amounts of digital signals, making it suitable for complex automation scenarios.
Modular design: Compatible with other modules in the Siemens S7-300 series, it can flexibly expand the system scale.
Fast response: The response time of each input channel is 3.7 ms, suitable for real-time control applications.
Signal isolation: There is electrical isolation between the module and the backplane bus to ensure signal stability and reduce interference.
Status indication and diagnosis: Each channel has LED status indicator lights, and the module has diagnostic functions that can detect and report signal status and errors in real time.
Application areas:
Factory automation: suitable for collecting equipment status signals on the production line, such as input signals from sensors, switches, etc.
Process control system: used to monitor various digital input signals in process control.
Machine manufacturing: suitable for signal input processing of mechanical equipment, used for equipment monitoring and status feedback.
Building automation: can be used for signal acquisition in building management systems, such as access control systems, fire alarms, etc.

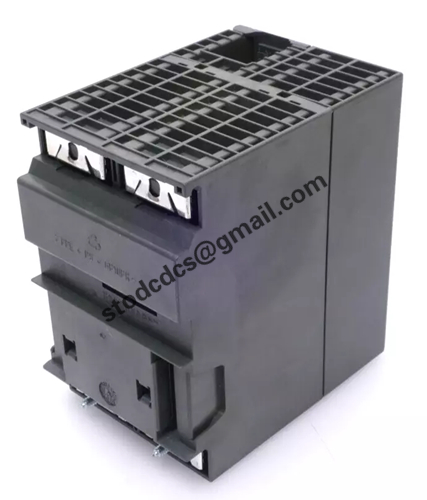

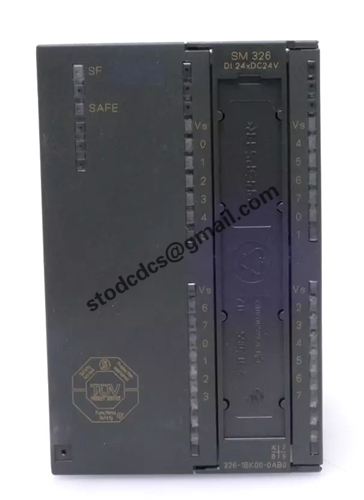

Product details picture:
