Siemens 6ES7323-1BL00-0AA0 Digital I/O Module

Product manual:

Main technical specifications:
Module type: Digital input/output module
Number of input channels: 32 digital inputs
Number of output channels: 32 digital output channels
Input voltage range: 24V DC (20.4V-28.8V)
Output voltage range: 24V DC
Input current: The typical current for each input channel is 7 mA
Maximum output current: 0.5 A per output channel, total current not exceeding 4 A
Short circuit protection: The module has a short circuit protection function to ensure the safety of the output channel
Overload protection: Each output channel has overload protection
Signal status indication: equipped with LED indicator lights, displaying the status of each input and output channel
Connection method: Use a 40 pin front connector for cable connection
Power consumption: Typical low power consumption, suitable for large-scale integration
Size: 125 mm x 40 mm x 120 mm (height x width x depth)
Application areas:
The Siemens 6ES7323-1BL00-0AA0 module is particularly suitable for industrial scenarios that require large-scale digital input/output control, such as:
Manufacturing automation: Control the status signal input and equipment start/stop output of production line equipment.
Process control system: processes digital signals from various sensors and actuators.
Machine manufacturing: It can digitally control and monitor multiple devices.
Building automation: achieving monitoring and control of building facilities.
Module features:
High density input/output: This module has 32 inputs and 32 outputs, suitable for scenarios that require processing large amounts of digital signals.
Modular design: seamlessly integrated with other modules in the Siemens S7-300 series, allowing for flexible system scaling.
Complete protection functions: equipped with short circuit and overload protection, improving the safety and reliability of the system.
Fast response: The response time of digital input and output signals is short, suitable for high demand real-time control applications.

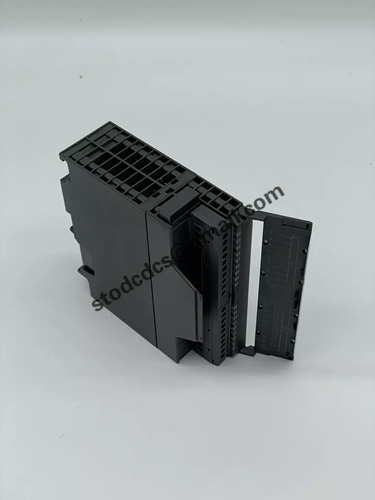

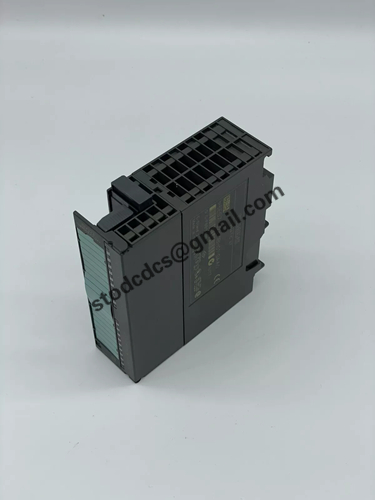

Product details picture:
