Siemens 6ES7323-1BH01-0AA0 Input/Output Module

Product manual:

Siemens 6ES7323-1BH01-0AA0 is a digital output module in the S7-300 series, suitable for various industrial automation applications. It is an improved model of the 6ES7323-1BH00-0AA0 module, with similar functionality but possibly enhanced or optimized in certain details.
Main technical specifications:
Module type: Digital output module
Output type: 24V DC
Number of output channels: 16
Voltage range: 20.4 V to 28.8 V DC
Maximum output current: 0.5 A per channel, total current not exceeding 4 A
Short circuit protection: Each output has a short circuit protection function
Overload protection: Each output has overload protection function
Status indication: LED indicator light displays output status
Front connector: 40 pin front connector for cable connection
Diagnostic function: supports diagnostic function, which can detect the operating status and fault conditions of the module
Response time: Typical switching time is 0.1 ms
Size: 125 mm x 40 mm x 120 mm (height x width x depth)
Application scenarios:
This module is suitable for scenarios that require fast and accurate digital signal output, such as:
Factory automation
machine building
process control
Building automation system
characteristic:
High reliability: It has short-circuit and overload protection functions to ensure that the system will not be damaged in case of abnormalities.
Modular design: It can seamlessly integrate with other S7-300 series modules to expand system capabilities.
Fast response: A response time of 0.1 ms is suitable for high demand control applications.
Easy to maintain: Supports module hot swapping and easy replacement, reducing downtime.

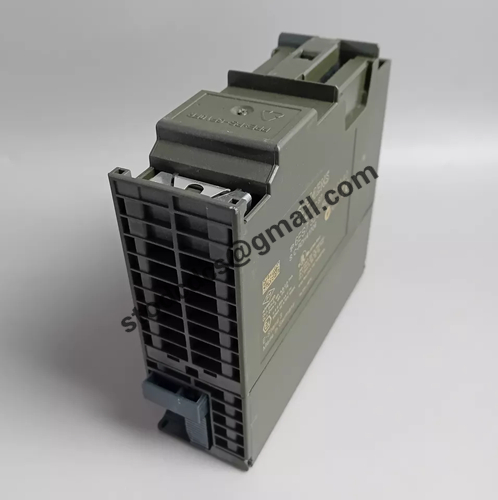

Product details picture:
