Siemens 6ES7322-1HF01-0AA0 Logic Controller Module

Brand:Siemens
Model:6ES7322-1HF01-0AA0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7322-1HF01-0AA0 Logic Controller Module

Product manual:

Siemens 6ES7322-1HF01-0AA0 is a digital output module designed specifically for S7-300 series PLC systems. It has 32 output channels and is suitable for controlling various devices and actuators, widely used in industrial automation and process control.
Main technical specifications:
Number of output channels: 32 digital outputs
Output voltage: 24V DC
Maximum output current: 0.5 A per channel
Total output current: Maximum 8 A (when all channels are used together)
Protection level: IP20 (suitable for installation inside control cabinets)
Electrical isolation: There is electrical isolation (usually 500V AC) between the output signal and the backplane bus
Functional features:
High density output: 32 digital outputs, suitable for controlling various low-voltage devices such as solenoid valves, relays, lamps, etc., saving space and costs.
Short circuit protection: Built in short circuit protection function, which can automatically cut off the power supply when a channel fails, protecting the module and load.
LED status indicator light: Each output channel is equipped with an LED indicator light, which displays the output status in real time for easy monitoring and troubleshooting.
Electrical isolation: The electrical isolation design between the output channel and the controller backplane ensures the safety and stability of the system, reducing the risk of interference.
High reliability: The module design is suitable for harsh environmental conditions and has high anti-interference ability and reliability.
Application scenarios:
Factory automation: Control equipment such as motors, sensors, relays, etc. to achieve automated operations.
Process control: Control various equipment in industries such as chemical, pharmaceutical, and food processing to ensure stable production processes.
Building automation: controlling lighting, air conditioning, heating and other facilities to improve the efficiency and energy utilization of building management.
Mechanical manufacturing: used to control actuators in automated machinery to achieve precise operations.

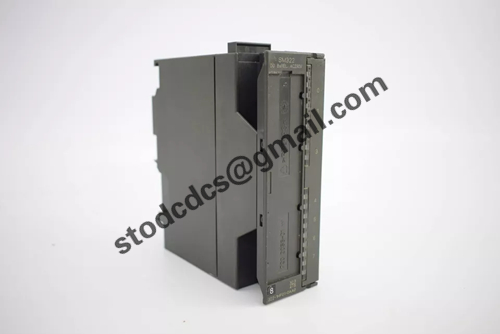

Product details picture:
