Siemens 6ES7322-1BL00-0AA0 output module

Product manual:

Main technical specifications:
Number of output channels: 8 digital outputs
Output voltage: 24V DC
Maximum output current: 0.5 A per channel
Total output current: maximum 4 A
Output type: DC load (suitable for controlling relays, solenoid valves, and other equipment)
Isolation voltage: 500V AC (isolation between output and backplane bus)
Protection level: IP20 (suitable for installation inside control cabinets)
Electrical isolation: There is electrical isolation between the output and the backplane bus to ensure stable system operation and prevent external interference.
Functional features:
8-way output: Provides 8 independent 24V DC digital outputs, suitable for small device control or precise signal driving.
Short circuit protection: Built in short circuit protection function ensures automatic shutdown of corresponding output in case of circuit failure, protecting modules and equipment from damage.
Electrical isolation: There is a 500V electrical isolation between the output and the backplane bus, enhancing the stability and anti-interference ability of the module in complex industrial environments.
LED status indicator light: Each output channel is equipped with a status indicator light, which facilitates real-time monitoring of output status and facilitates maintenance and debugging.
Modular design: Suitable for S7-300 series PLC systems, supporting modular expansion and flexible adaptation to different control system requirements.
Application scenarios:
Factory automation: Controlling various switches, relays, and other actuators in the production line to achieve automated equipment operations.
Process control: Suitable for process control systems in industries such as chemical and pharmaceutical, used to drive solenoid valves and other equipment.
Mechanical manufacturing: Implementing digital output control in mechanical automation equipment to drive various actuators and control devices.
Building automation: Used for digital signal control in building control systems, such as lighting, air conditioning, or security systems.

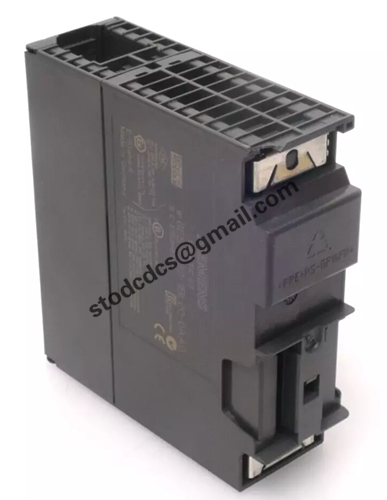

Product details picture:
