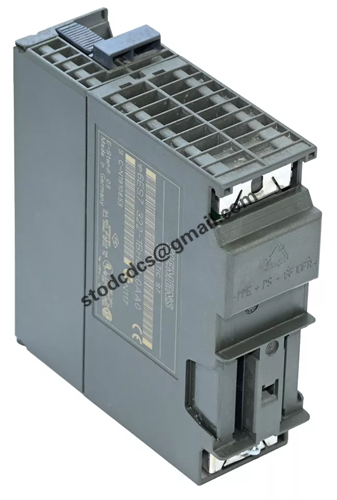

Siemens 6ES7322-1BH81-0AA0 digital output

Brand:Siemens
Model:6ES7322-1BH81-0AA0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7322-1BH81-0AA0 digital output

Product manual:

Main technical specifications:
Number of output channels: 16 digital outputs
Output voltage: 24V DC
Maximum output current: 0.5 A per channel
Total output current: maximum 4 A (8 outputs per group)
Output type: Suitable for DC loads (such as solenoid valves, relays, etc.)
Isolation voltage: 500V AC (between output and backplane bus)
Protection level: IP20 (suitable for installation inside industrial control cabinets)
Electrical isolation: There is electrical isolation between the output channel and the backplane bus to ensure signal safety and reliability in industrial environments
Functional features:
16 output channels: Provides 16 independent 24V DC digital output channels, suitable for the control needs of medium and large equipment.
Short circuit and overload protection: This module is equipped with short circuit and overload protection functions to prevent module or equipment damage caused by circuit faults or excessive loads.
Electrical isolation: There is a 500V isolation between the output channel and the backplane bus, which enhances the ability to resist electromagnetic interference and ensures stable system operation.
Status indicator light: Each output channel has an LED status indicator light, which facilitates real-time monitoring of the working status of the output channel and facilitates debugging and maintenance.
Modular design: Fully compatible with S7-300 series PLC systems, easy to integrate, expand, and maintain.
Application scenarios:
Factory automation: suitable for equipment control in industrial production lines, such as switches, relays, actuators, etc., used to achieve automated operations.
Process control: Used in process control systems in industries such as chemical and pharmaceutical to drive solenoid valves and other actuators.
Building automation: used for controlling building management systems, such as lighting, air conditioning, security systems, etc.
Mechanical manufacturing: Suitable for control applications in mechanical manufacturing and automation equipment, driving devices and actuators for precise operation.
