Siemens 6ES7322-1BH01-0AA0 Digital Output Module

Product manual:

Main technical specifications:
Number of output channels: 16 digital outputs
Output voltage: 24V DC
Maximum output current: 0.5 A per channel
Total output current: maximum 4 A (8 outputs per group)
Output type: Suitable for DC loads (such as solenoid valves, relays, etc.)
Isolation voltage: 500V AC (isolation between output and backplane bus)
Protection level: IP20
Electrical isolation: There is 500V isolation between the output signal and the backplane bus
Functional features:
16 output channels: Provides 16 independent 24V DC digital output channels, suitable for large-scale device control applications.
Short circuit protection: Equipped with a short circuit protection function, it can automatically close the corresponding channel when a circuit fault is detected, protecting the module and equipment.
Overload protection: Supports overload protection to prevent damage to the module caused by output current overload and extend equipment life.
Electrical isolation: There is electrical isolation between the output channel and the backplane bus to ensure safety and anti-interference capability in industrial environments.
Status indicator lights: Each channel is equipped with LED indicator lights that display real-time output status for easy debugging and monitoring of system operation.
Modular design: compatible with the S7-300 series modular structure, facilitating system integration and expansion, and meeting the needs of automation systems of different scales.
Application scenarios:
Factory automation: Used in factory production lines to control relays, actuators, switches, and other equipment, achieving automated production control.
Process control: used to drive solenoid valves, motors, and other equipment in process control systems to ensure the smooth progress of production process automation.
Building automation: suitable for equipment control in building management systems, such as lighting systems, ventilation systems, security equipment, etc.
Mechanical manufacturing: Used in mechanical automation systems to control execution equipment and drivers, achieving automated operations.

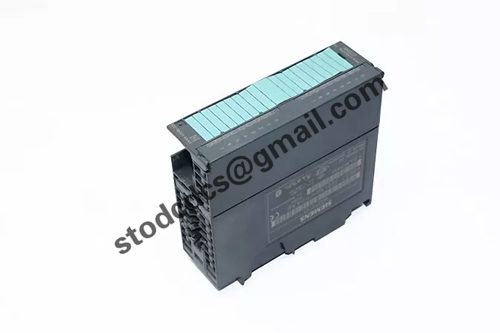

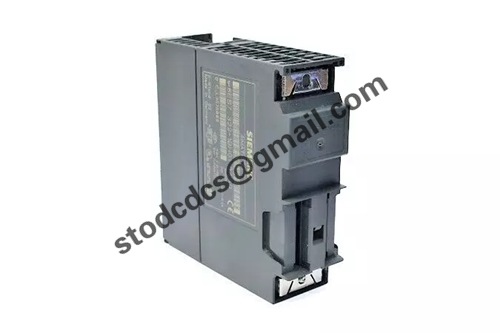

Product details picture:
