Siemens 6ES7322-1BF01-0AA0 Digital Output Module

Product manual:

Number of output channels: 8 digital outputs
Output voltage: 24V DC
Maximum output current: 0.5 A per channel
Output type: Load type is DC load
Isolation voltage: 500V AC (between output and backplane bus)
Protection level: IP20
Electrical isolation: Electrical isolation between each channel and the backplane bus
Functional features:
8-way output: Provides 8 independent digital output channels, suitable for medium-sized device control needs.
24V DC output: The output voltage is 24V DC, which is compatible with a wide range of industrial equipment and sensors, such as solenoid valves, relays, etc.
Short circuit protection: With short circuit protection function, it automatically closes the corresponding channel when the output circuit fails, protecting the module and equipment.
Electrical isolation: There is a 500V isolation between the output signal and the backplane bus to ensure the safe and reliable operation of the system and prevent electrical interference.
Overload protection: The output module supports overload protection to prevent damage caused by excessive current and extend the system's lifespan.
Status indicator light: Each output channel is equipped with LED indicator lights, which display the status of the output channel in real time for easy debugging and maintenance.
Application scenarios:
Factory automation: suitable for controlling switches, relays, actuators, etc. in industrial production equipment, commonly used in automation control systems.
Process control: In a process control system, it is used to drive executing equipment, such as solenoid valves, motors, etc., to achieve automated operations.
Building automation: can be used to control equipment in building management systems, such as lighting systems, air conditioning equipment, etc.
Mechanical manufacturing: suitable for control signal output in mechanical equipment, driving various automation devices.

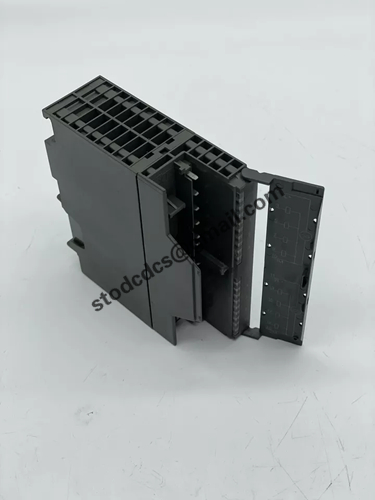

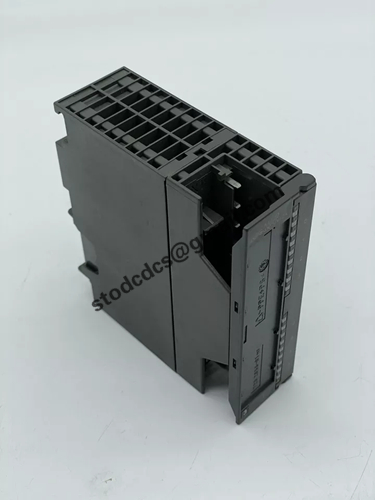

Product details picture:
