Siemens 6ES7316-1AG00-0AB0 processor

Product manual:

Siemens 6ES7316-1AG00-0AB0 is a central processing unit (CPU) in the S7-300 series, with the specific model being CPU 316-2 DP. This processor is designed specifically for industrial automation and has the following main features and technical specifications:
Main features:
Processing ability:
Based on a 32-bit RISC architecture, it provides efficient real-time data processing capabilities and is suitable for complex control tasks.
Memory configuration:
Built in 1 MB RAM, capable of storing large-scale user programs and data.
Support external memory expansion to meet complex application requirements.
Input/Output Expansion:
It can connect up to 32 I/O modules and flexibly adapt to various automation needs.
Communication interface:
Integrate PROFIBUS DP and MPI interfaces to ensure efficient data exchange and connection with other devices.
Diagnostic function:
Provide real-time fault detection and monitoring to help quickly identify and troubleshoot faults, and improve system reliability.
Programming environment:
Programming is done through Siemens STEP 7 software, which supports multiple programming languages (such as ladder diagrams, functional block diagrams, etc.) for easy development and debugging.
Application areas:
Industrial automation: widely used in production line control, process monitoring, and equipment management.
Installation and configuration:
Installation: The module can be directly inserted into the S7-300 rack, supports hot swapping, and is easy to maintain and replace.
Configuration: Set up through STEP 7 software, supporting flexible system configuration to meet different application requirements.

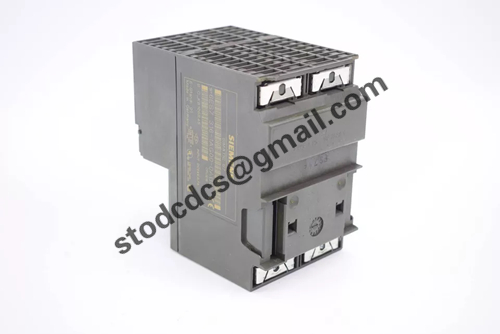

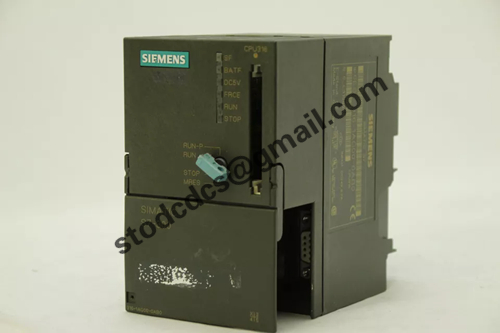

Product details picture:
