Siemens 6ES7314-6BF02-0AB0 connector

Product manual:

Siemens 6ES7314-6BF02-0AB0 is a connector module in the S7-300 series, typically used to connect CPUs and other I/O modules. It plays an important role in industrial automation systems. Here are some of the main features and functions of this connector:
Main features:
Interface compatibility:
Designed to connect with CPU modules and I/O modules of the S7-300 series, ensuring good communication between various components within the system.
Modular design:
Support hot swapping, making it easy to replace or maintain modules without shutting down, and improving system availability.
Signal transmission:
Ensure fast and reliable data transmission between CPU and I/O devices through efficient signal transmission interfaces.
Diagnostic function:
Provide real-time diagnostic information for system monitoring and troubleshooting, improving overall system stability.
Flexible configuration:
Adapt to different application requirements, support multiple I/O configurations and expansion options.
Application areas:
Industrial automation: widely used in applications such as production lines, equipment control, and process monitoring to ensure efficient system operation.
Installation and configuration:
Installation: It can be easily inserted into the S7-300 rack and used in conjunction with other modules.
Configuration: Set up through STEP 7 software, supporting flexible system configuration to meet different application requirements.

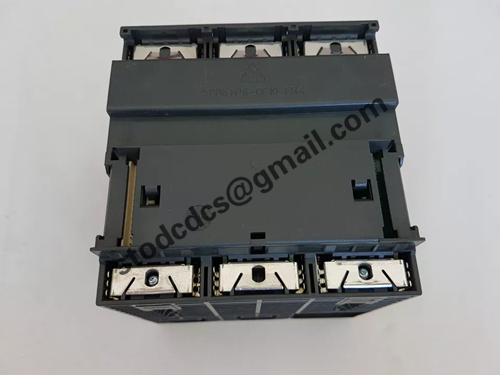

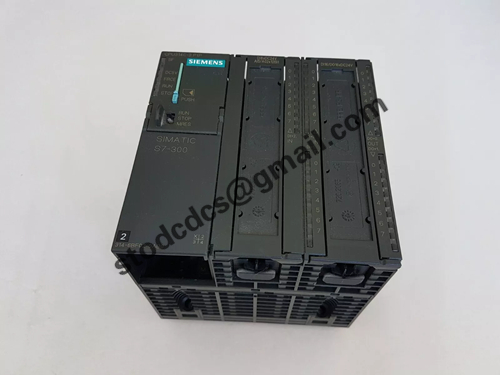

Product details picture:
