Siemens 6ES7314-5AE02-0AB0 Compact CPU Module

Brand:Siemens
Model:6ES7314-5AE02-0AB0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7314-5AE02-0AB0 Compact CPU Module

Product manual:

Siemens 6ES7314-5AE02-0AB0 is a compact CPU module, model number CPU 314C-2. This module is designed for industrial automation applications in the S7-300 series and is particularly suitable for environments with limited space. The following are its main features and technical specifications:
Main features:
Processing ability:
Based on a 32-bit RISC architecture, it provides efficient data processing capabilities, suitable for complex control and real-time applications.
Memory configuration:
Built in 512 KB RAM for storing user programs and data, suitable for medium-sized application needs.
Support external memory expansion for handling more complex control logic.
Input/Output Expansion:
It can connect up to 32 I/O modules and flexibly respond to various automation needs.
Communication interface:
Integrate MPI and PROFIBUS communication interfaces, support efficient data exchange with other devices, and enhance the system's integration capabilities.
Compact design:
Compact design is suitable for installation in limited space, saving rack space.
Diagnostic function:
Built in fault detection and monitoring functions, real-time monitoring of system status for quick maintenance and troubleshooting.
Programming environment:
Programming is done through Siemens STEP 7 software, which supports multiple programming languages (such as ladder diagrams, functional block diagrams, etc.) for easy development and debugging.
Application areas:
Industrial automation: widely used in production line control, process monitoring, equipment control and other fields.
Installation and configuration:
Installation: The module can be directly inserted into the S7-300 rack, supports hot swapping, and is easy to maintain and replace.
Configuration: Set up through STEP 7 software, supporting flexible system configuration to meet different application requirements.

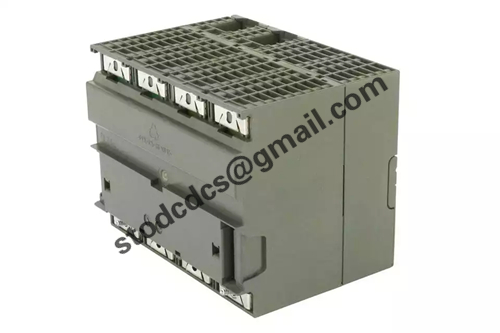

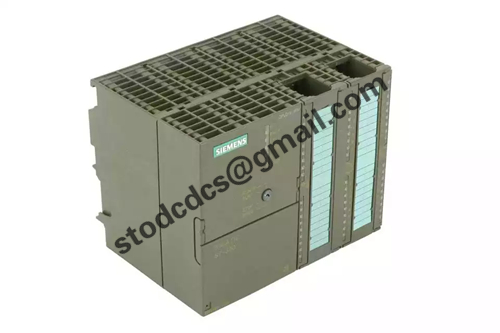

Product details picture:
