Siemens 6ES7314-1AG14-0AB0 CPU module

Product manual:

Siemens 6ES7314-1AG14-0AB0 is a central processing unit in the S7-300 series, with the specific model being CPU 314C-2. This CPU module is suitable for various industrial automation applications and has the following main features and technical specifications:
Main features:
Processing ability:
Based on 32-bit RISC architecture, it has efficient data processing performance and is suitable for complex control and real-time monitoring tasks.
Memory configuration:
Built in 512 KB RAM, capable of meeting the storage needs of medium-sized applications.
Optional expansion memory, convenient for increasing program and data storage capacity.
Input/Output Expansion:
Supports up to 32 I/O module connections, flexibly adapting to different automation needs.
Communication interface:
Equipped with MPI and PROFIBUS communication interfaces, it supports efficient data exchange with other devices and enhances system integration capabilities.
Diagnostic function:
Built in fault detection and monitoring functions, real-time monitoring of system status for quick maintenance and troubleshooting.
Programming environment:
Programming is done through Siemens STEP 7 software, which supports multiple programming languages such as ladder diagrams, functional block diagrams, etc., making it easy to develop and debug.
Application areas:
Industrial automation: widely used in multiple fields such as machine control, production line monitoring, and process control.
Installation and configuration:
Installation: The module can be directly inserted into the S7-300 rack, supports hot swapping, and is easy to maintain.
Configuration: Set up through STEP 7 software, supporting flexible system configuration to meet different application requirements.

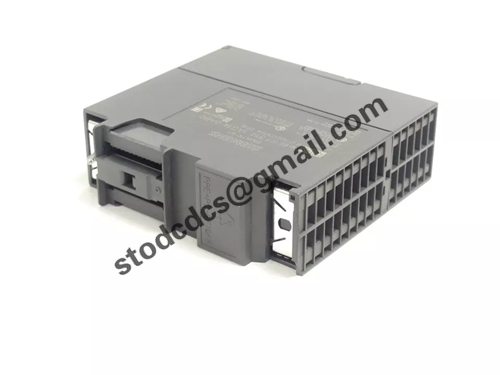

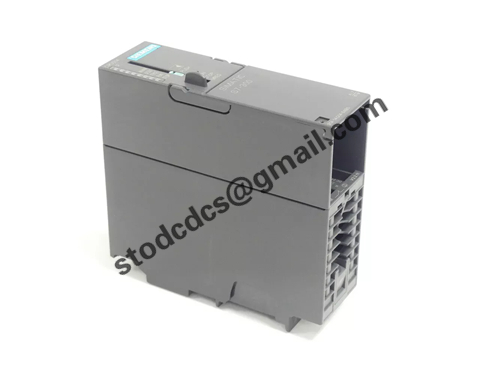

Product details picture:
