Siemens 6ES7314-1AG13-0AB0 Central Processing Unit
Product manual:
Siemens 6ES7314-1AG13-0AB0 is a central processing unit in the S7-300 series, with the specific model being CPU 314C-2. This CPU is widely used in industrial automation and control systems, with multiple powerful functions. The following are its main features and technical specifications:
Main features:
Processing ability:
Based on a 32-bit RISC architecture, it provides efficient data processing capabilities, suitable for complex control tasks and real-time applications.
Memory configuration:
Built in 512 KB RAM, capable of storing user programs and data.
Support expanding storage to increase program capacity and meet larger application requirements.
Input/Output Expansion:
Supports up to 32 I/O module connections, flexibly adapting to different automation needs.
Communication interface:
Integrating MPI and PROFIBUS communication interfaces facilitates data exchange with other devices, enhancing system flexibility and integration capabilities.
Diagnostic function:
Built in fault detection and monitoring functions, real-time monitoring of system status for quick maintenance and troubleshooting.
Programming environment:
Programming is done through Siemens STEP 7 software, which supports multiple programming languages (such as ladder diagrams, functional block diagrams, etc.) for easy development and debugging.
Application areas:
Industrial automation: widely used in machine control, production line monitoring, process control, etc.
Installation and configuration:
Installation: The module can be directly inserted into the S7-300 rack, supports hot swapping, and is easy to maintain and replace.
Configuration: Set up through STEP 7 software, supporting flexible system configuration to meet different application requirements.

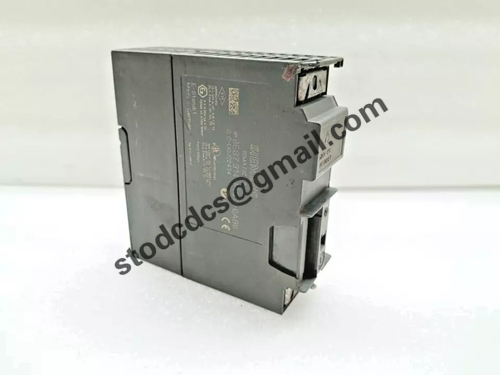

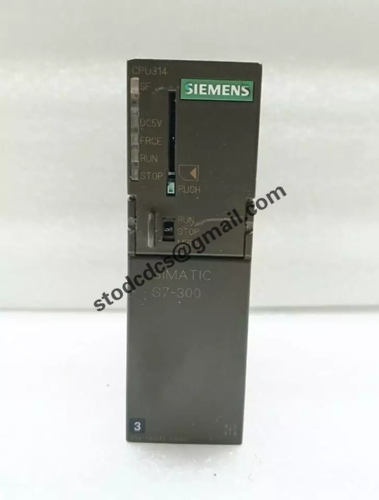

Product details picture:
