Siemens 6ES7314-1AE03-0AB0 Controller

Product manual:

Siemens 6ES7314-1AE03-0AB0 is a central processing unit in the S7-300 series, with the specific model being CPU 314-2. This controller is widely used in industrial automation and process control, with multiple powerful functions. The following are its main features and technical specifications:
Main features:
Processing ability:
Based on a 32-bit RISC architecture, it provides efficient processing performance and is suitable for complex control tasks and real-time applications.
Memory configuration:
Built in 512 KB RAM for storing user programs and data.
Support for expanding storage to increase program capacity and meet larger application requirements.
Input/Output Expansion:
Supports connections for up to 32 I/O modules, flexibly adapting to various automation needs.
Communication interface:
Integrate MPI and PROFIBUS communication interfaces to facilitate data exchange with other devices and enhance system flexibility.
Diagnostic function:
Built in fault detection and monitoring functions, real-time monitoring of system status for quick maintenance and troubleshooting.
Programming environment:
Programming is done through Siemens STEP 7 software, which supports multiple programming languages (such as ladder diagrams, functional block diagrams, etc.) for easy development and debugging.
Application areas:
Industrial automation: widely used in machine control, production line monitoring, process control, etc.
Installation and configuration:
Installation: The module can be directly inserted into the S7-300 rack, supports hot swapping, and is easy to maintain and replace.
Configuration: Set up through STEP 7 software, supporting flexible system configuration to meet different application requirements.

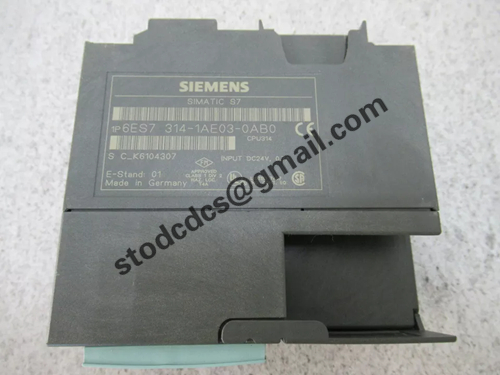

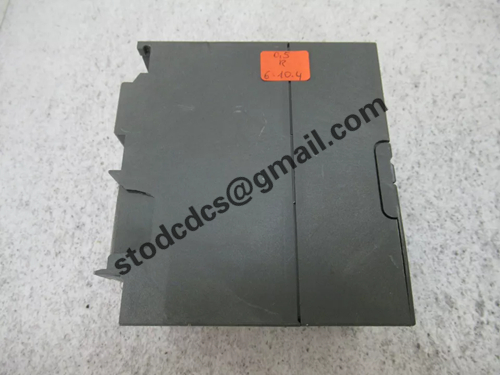

Product details picture:
