Siemens 6ES7314-1AE01-0AB0 Central Processing Unit

Product manual:

Siemens 6ES7314-1AE01-0AB0 is a central processing unit in the S7-300 series, with the specific model being CPU 314. This module is widely used in industrial automation systems and has multiple powerful functions. The following are its main features and technical specifications:
Main features:
Processing ability:
Adopting a 32-bit RISC architecture, it provides efficient processing performance and is suitable for complex control and real-time applications.
Memory configuration:
Built in 512 KB RAM for storing user programs and data, capable of meeting most application needs.
Optional expansion memory for increasing program capacity.
Input/Output Expansion:
Supports up to 32 I/O module connections, flexibly adapting to different automation needs.
Communication interface:
Integrate MPI and PROFIBUS communication interfaces, support communication with other devices, and enhance system integration capabilities.
Diagnostic function:
Built in fault detection and monitoring functions, real-time monitoring of system status, convenient and fast maintenance.
Programming environment:
Programming is done through Siemens STEP 7 software, which supports multiple programming languages such as ladder diagrams, functional block diagrams, etc., making it easy to develop and debug.
Application areas:
Industrial automation: widely used in machine control, process control, production line monitoring, etc.
Installation and configuration:
Installation: The module can be directly inserted into the S7-300 rack, supports hot swapping, and is easy to maintain and replace.
Configuration: Set up through STEP 7 software, flexible system configuration can meet different application requirements.

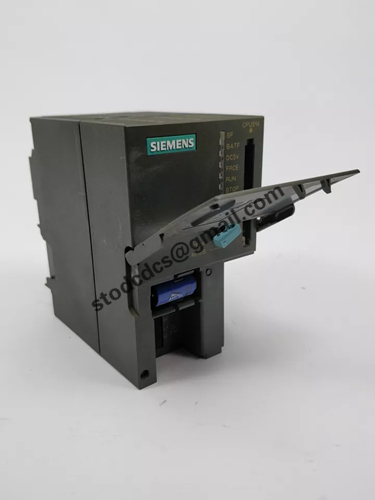

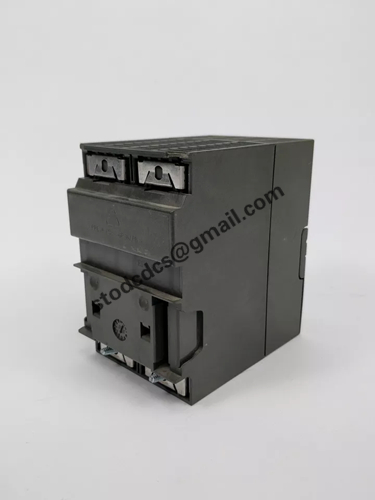

Product details picture:
