Siemens 6ES7313-6BE01-0AB0 Central Controller Module

Brand:Siemens
Model:6ES7313-6BE01-0AB0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7313-6BE01-0AB0 Central Controller Module

Product manual:

Siemens 6ES7313-6BE01-0AB0 is an S7-300 series CPU 313C-2 DP central controller module designed specifically for medium-sized automation control tasks. It integrates a processor, digital input/output (I/O), and PROFIBUS DP master/slave communication interface to flexibly handle complex control tasks.
main features
Quick processing capability:
Having fast processing speed, suitable for industrial control tasks with high real-time performance, ensuring precise and efficient operation of automation processes.
Modular design:
As part of the S7-300 series, it supports seamless integration with other I/O modules, functional modules, and communication modules, allowing the system to flexibly expand according to requirements.
Multiple programming languages supported:
Compatible with STEP 7 programming software, supporting programming languages such as Ladder Diagram (LAD), Function Block Diagram (FBD), and Statement Table (STL), making programming more flexible and diverse.
Integrated diagnostic function:
Built in system diagnostic function helps to quickly detect and troubleshoot faults, ensuring high availability and stability of the system.
Data storage and program extension:
Support the expansion of program storage capacity through MMC memory cards, facilitating the management of complex user programs.
technical specifications
Working memory: 64 KB
Loading memory: Supports up to 8 MB (via MMC card)
Communication interface:
MPI (Multi Point Interface)
PROFIBUS DP master/slave interface
Integrated I/O:
24 point digital input (DI)
16 point digital output (DO)
Power supply voltage: 24 V DC
Processing speed: approximately 50 ns/instruction
Environmental conditions: Suitable for industrial environments, with temperature resistance, dust resistance, and anti-interference design

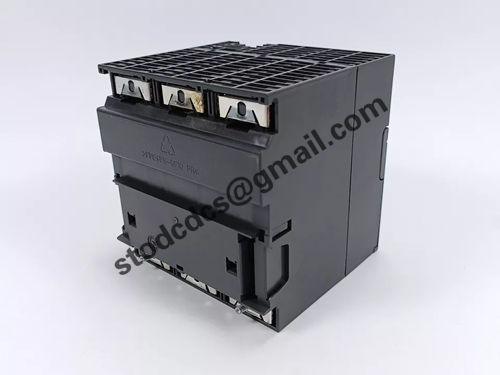

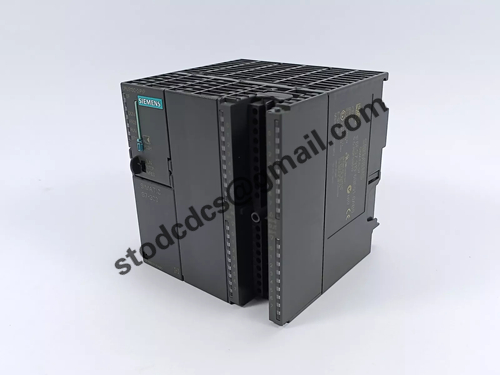

Product details picture:
