Siemens 6ES7222-1BF20-0XA0 Digital Output Module

Product manual:

Siemens 6ES7222-1BF20-0XA0 is a digital output module in the SIMATIC S7-200 series, specifically designed to expand the digital output capabilities of PLC systems. It can control external devices such as solenoid valves, relays, indicator lights, and other industrial equipment, and is suitable for various automation control systems.
Main technical specifications:
Product model: 6ES7222-1BF20-0XA0
Module type: Digital output module
Number of output channels:
8 digital outputs, DC 24V.
Output voltage:
24V DC.
Output current:
The maximum output current of each channel is 0.75A.
The total current load shall not exceed 6A.
Short circuit protection:
Built in short-circuit protection function to prevent output circuit damage due to overload or malfunction.
Electrical isolation:
There is electrical isolation between the output terminal and the internal circuit of the PLC, which enhances the system's anti-interference ability.
Installation method:
Supports DIN rail installation for easy integration into industrial control cabinets.
Size:
Width: 71.2 mm
Height: 80 mm
Depth: 62 mm
Main features:
8 independent digital outputs:
The module provides 8 independent digital output channels for controlling external devices and supporting various industrial applications.
Short circuit protection:
Each output channel has a short-circuit protection function, which can automatically cut off the current in case of a short circuit, protecting the module and connected equipment.
Electrical isolation design:
The output channel is isolated from the internal logic circuit, effectively avoiding interference from external devices and ensuring stable signal transmission.
Modular design:
Supports expansion and is compatible with other S7-200 series modules, making it easy to expand and upgrade existing systems.
High reliability:
Siemens' consistent high quality and reliability make it suitable for long-term stable operation in complex industrial environments.

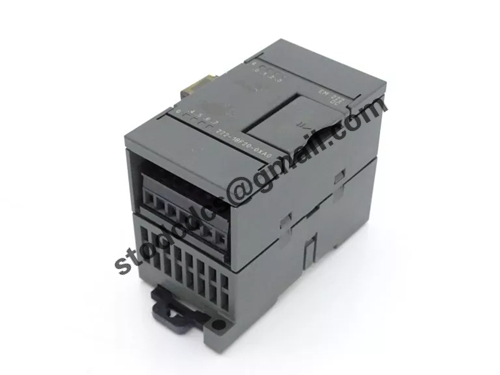

Product details picture:
