Siemens 6ES7216-2AD00-0XB0 CPU module
Product manual:
Siemens 6ES7216-2AD00-0XB0 is a CPU module in the SIMATIC S7-1200 series, widely used in the fields of industrial automation and control. This module is designed specifically for small and medium-sized control systems, providing powerful processing capabilities and multiple functions, suitable for various automation applications.
Main technical specifications:
Product model: 6ES7216-2AD00-0XB0
Number of input/output points:
16 digit input
16 digital outputs (transistor outputs)
Analog input/output:
2 analog inputs
2 analog outputs
Power supply voltage:
24V DC
Storage capacity:
Working memory: 150 KB (for programs and data)
Loading memory: 4 MB (for project files)
Communication interface:
PROFINET interface: Built in 1 PROFINET interface
Scalability:
Supports up to 8 signal modules and can expand more I/O functions
Instruction execution time:
The basic instruction execution time is about 0.1 microseconds per instruction
Size:
Width: 130 mm
Height: 100mm
Depth: 75mm
Work environment:
Working temperature range: 0 ° C to 60 ° C
Storage temperature range: -40 ° C to 70 ° C
Functional features:
Powerful processing capability:
Provide efficient processing capabilities, suitable for complex control tasks, and able to meet the needs of small and medium-sized industrial automation projects.
Rich I/O options:
The integrated digital and analog I/O enables the module to adapt to various application scenarios.
Integrated communication interface:
The built-in PROFINET interface supports communication with other controllers, HMI devices, and industrial Ethernet devices.
Flexible Expansion:
Support the expansion of I/O points by adding signal modules to facilitate flexible configuration of the system according to requirements.
Efficient storage management:
Provide sufficient working memory and loading memory to handle various automation projects.

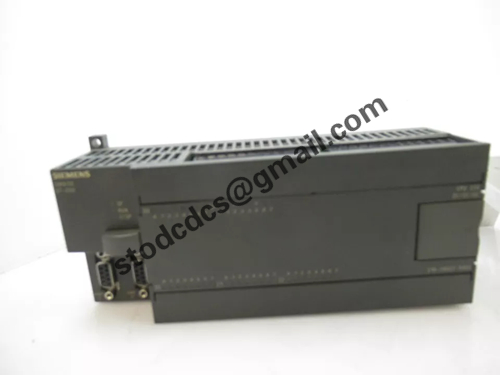

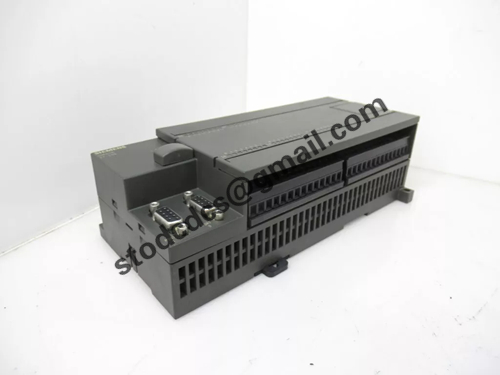

Product details picture:
