Siemens 6ES7215-2AD00-0XB0 Controller Module
Product manual:
Siemens 6ES7215-2AD00-0XB0 is a controller module in the SIMATIC S7-1200 series, typically used for control tasks in small and medium-sized automation systems. As a compact CPU module, it is suitable for process control and equipment automation applications in various industrial automation fields.
Main technical specifications:
Product model: SIMATIC S7-1200, CPU 1215C
Number of input/output points:
14 digit inputs
10 digital outputs (transistor output)
Analog input:
2 analog inputs
Power supply voltage:
24V DC
Storage capacity:
Working memory: 100 KB (for programs and data)
Loading memory: 4 MB (for project files)
Communication interface:
PROFINET interface: Built in 1 PROFINET interface
Scalability:
Supports up to 3 Signal Boards to add additional I/O modules
Supports up to 8 Signal Modules to expand system functionality
Instruction execution time:
The basic instruction execution time is 0.1 microseconds per instruction
Size:
Width: 130 mm
Height: 100mm
Depth: 75mm
Work environment:
Working temperature range: 0 ° C to 60 ° C
Storage temperature range: -40 ° C to 70 ° C
Functional features:
Powerful processing capability:
Supports high-speed processing and is suitable for automated tasks that require high response speed.
Integrated communication interface:
The built-in PROFINET interface supports communication with other controllers, HMIs, and industrial Ethernet devices.
Flexible extension options:
Support the expansion of I/O points by adding signal boards and signal modules, flexibly adapting to changes in system requirements.
Efficient storage management:
Provide 100 KB of working memory and 4 MB of loading memory, sufficient to handle complex automation projects.
Reliable power supply:
Use a 24V DC power supply to ensure stable operation of the controller in industrial environments.
Analog input support:
Integrated with 2 analog inputs, suitable for processing sensor data such as temperature, pressure, and other analog signals.

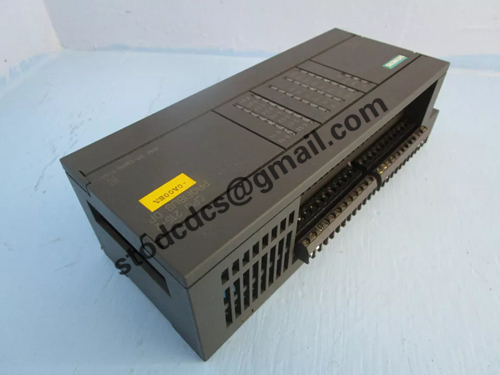

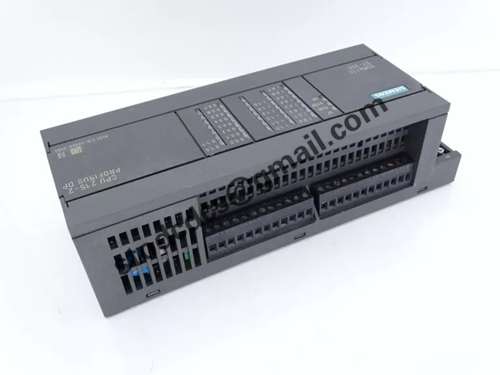

Product details picture:
