Siemens 6ES7214-2AD23-0XB0 Compact Unit
Product manual:
Siemens 6ESC214-2AD23-0XB0 is a compact control unit (Compact CPU) in the SIMATIC S7-1200 series. It is a compact unit that integrates CPU and I/O modules, designed specifically for small and medium-sized automation control tasks, providing high-performance processing capabilities and rich communication interfaces. It is widely used in fields such as industrial automation, process control, and building management.
Main technical specifications:
Product Name: SIMATIC S7-1200 Compact CPU
CPU model: CPU 1214C
Input/output points:
14 digit inputs
10 digital outputs (relay outputs)
2 analog inputs
Power supply voltage:
Working voltage range: DC 20.4V to 28.8V
Storage capacity:
Program memory: 50 KB
Data storage: 2 KB
Communication interface:
PROFINET interface: 1 PROFINET interface, supporting Ethernet communication
RS-485 communication interface: used for point-to-point communication
Instruction execution time: The basic instruction execution time is 0.1 microseconds per instruction, supporting fast response and real-time control
Scalability: Supports up to 8 expansion modules for adding I/O or functional modules
Dimensions: Width 110 mm, Height 100 mm, Depth 75 mm
Working temperature: Applicable temperature range is 0 ° C to 60 ° C
Functional features:
Integrated design: The compact design integrates CPU, digital I/O, and analog inputs, making it suitable for small automation systems.
Flexible Scalability: Supports up to 8 expansion modules, allowing for flexible increase in I/O points or functional modules according to project requirements.
PROFINET communication: Built in PROFINET interface, supporting fast communication with upper computer, HMI and other devices.
Quick response: Short instruction execution time, suitable for automated tasks that require quick response.
Wide input voltage range: Supports 24V DC power input to meet the power requirements of various industrial sites.
Built in analog input: suitable for processing analog quantities such as temperature and pressure, expanding the application range of the controller.

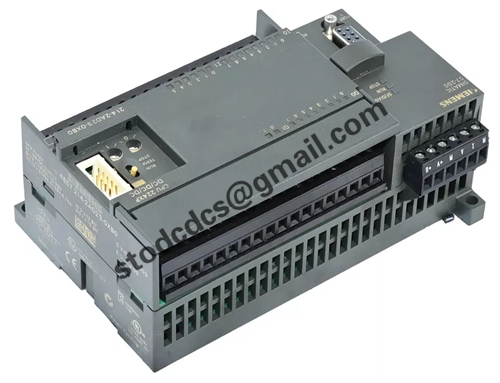

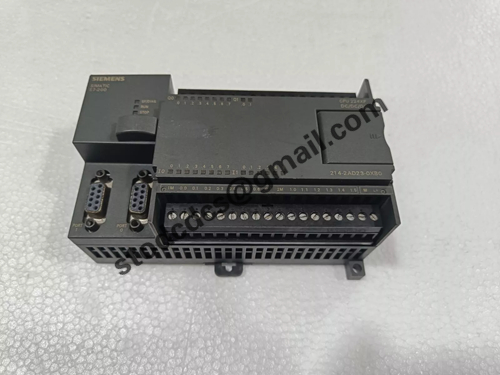

Product details picture:
