Siemens 6ES7214-1BD23-0XB0 CPU module

Brand:Siemens
Model:6ES7214-1BD23-0XB0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7214-1BD23-0XB0 CPU module

Product manual:

Siemens 6ES7214-1BD23-0XB0 is a CPU 224 DC/DC module in the SIMATIC S7-1200 series. This CPU module is designed specifically for small and medium-sized automation control systems and is widely used in fields such as industrial automation, building management, and process control.
Main technical specifications:
Type: SIMATIC S7-1200 CPU 224 DC/DC/DC
Input/output points:
14 digit inputs
10 digital outputs (transistor output)
Power supply voltage:
Working voltage: 20.4 V to 28.8 V DC
Power type: Suitable for DC power supply system
Storage capacity:
Program memory: 24 KB
Data storage: 10 KB
Communication interface:
1 RS-485 interface, supporting PPI (point-to-point communication), MPI (multi-point communication), and free port mode
Output type: transistor output, suitable for high-speed switch control
Instruction execution time: The basic instruction execution time is 0.22 microseconds per instruction, supporting real-time control
Scalability: Supports up to 7 expansion modules, increasing the number of input and output points or functional modules according to requirements
Operating temperature: Suitable for industrial environments ranging from 0 ° C to 60 ° C
Functional features:
Compact design: This module is designed to be compact and suitable for use in environments with limited space, with high-density I/O points.
High speed response capability: Using transistor output, it can achieve fast switching, which is very suitable for controlling devices that require frequent switching.
Powerful storage capacity: sufficient program and data storage capacity to support complex control logic and algorithms.
Flexible communication capability: The RS-485 interface supports multiple protocols and can easily communicate with other PLCs, HMIs, and smart devices.
Scalability: By expanding modules, I/O points can be flexibly increased or other functions can be integrated to meet different application needs.
Efficient execution speed: Fast instruction execution time enables it to efficiently handle real-time control tasks.

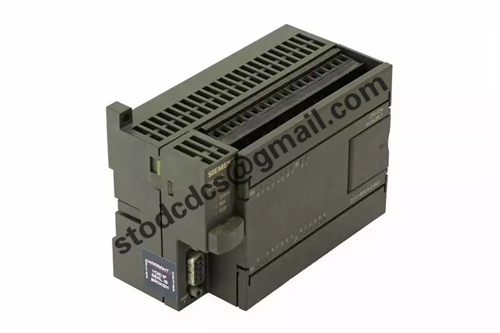

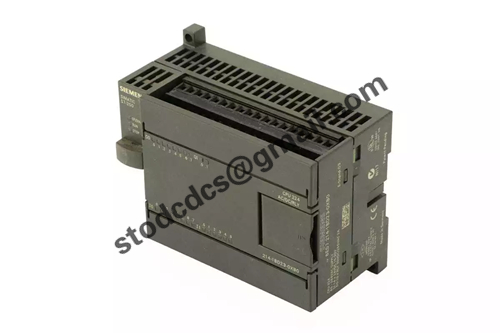

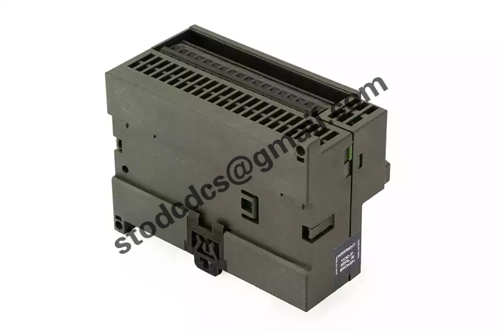

Product details picture:
