Siemens 6ES7214-1BD22-0XB0 Controller Module

Brand:Siemens
Model:6ES7214-1BD22-0XB0
Product status: New/used
Shipping place: Xiamen, China
Warranty: 365 days
Structural form: Other (specific form may vary depending on application)
Please contact Yvonne for quotation, thank you!

Details

Siemens 6ES7214-1BD22-0XB0 Controller Module

Product manual:

Siemens 6ES7214-1BD22-0XB0 is a CPU 224 DC/DC controller module in the SIMATIC S7-1200 series. This module is widely used in small and medium-sized automation control systems, suitable for industrial automation, building management, and various process control tasks.
Main technical specifications:
Type: SIMATIC S7-1200 CPU 224 DC/DC/DC Controller Module
Input/output points:
14 digit inputs
10 digital outputs (transistor output)
Power supply voltage: The working voltage range is 20.4 V to 28.8 V DC, suitable for DC power supply systems.
Storage capacity:
Program memory: 24 KB
Data storage: 10 KB
Communication interface:
1 RS-485 interface, supporting PPI (point-to-point communication), MPI (multi-point communication), and free port mode.
Output type: Using transistor output, suitable for fast switching and control applications.
Instruction execution time: The basic instruction execution time is 0.22 microseconds per instruction, ensuring the effectiveness of real-time control.
Scalability: Supports up to 7 expansion modules, and can increase the number of input and output points or functional modules according to needs.
Working temperature: Suitable for industrial environments ranging from 0 ° C to 60 ° C.
Functional features:
Compact design: Provides abundant I/O points, suitable for control in environments with limited space.
High speed output: The transistor output achieves fast response and is suitable for devices that require switching speed.
Powerful storage capability: Provides sufficient program and data storage space to support complex control logic and applications.

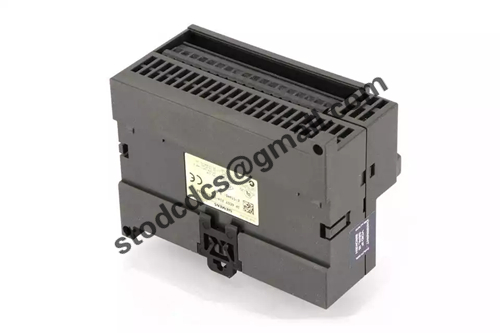

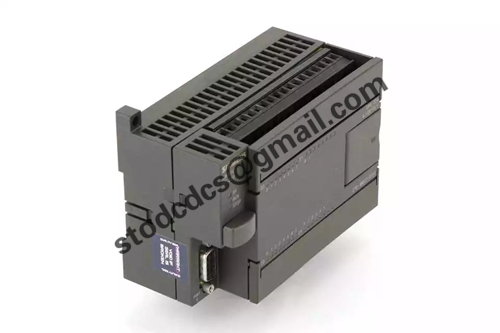

Product details picture:
