Siemens 6ES7214-1AD23-0XB0 Compact Unit Module

Product manual:

Siemens 6ES7214-1AD23-0XB0 is a compact unit module of CPU 224XP DC/DC in the SIMATIC S7-200 series,
Suitable for small and medium-sized automation control projects.
This module integrates multiple input and output functions, providing high-performance control capabilities,
And it can be flexibly expanded and widely applied to various industrial automation tasks.
Main technical specifications:
Type: SIMATIC S7-200 CPU 224XP DC/DC/DC
Input/output points:
14 digit inputs
10 digital outputs (transistor output)
2 analog inputs
1 analog output
Power supply voltage: DC power supply, with a voltage range of 20.4 V to 28.8 V DC.
Storage capacity:
Program memory: 16 KB
Data storage: 10 KB
Communication interface:
1 RS-485 interface: supports PPI (point-to-point communication), MPI (multi-point communication), and Freeport mode.
Loop time: The basic instruction execution time is 0.22 microseconds per instruction, supporting fast response control tasks.
Scalability: Supports up to 7 expansion modules, which can add more input/output or functional modules.
Working temperature: Suitable for industrial environments ranging from 0 ° C to 55 ° C.

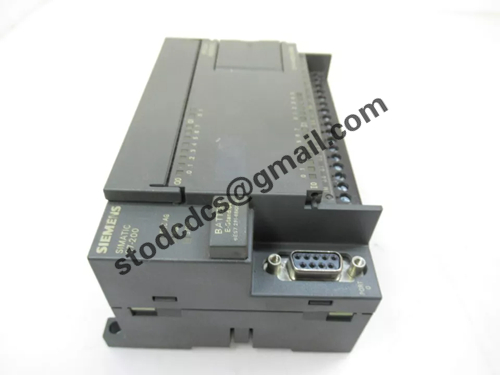

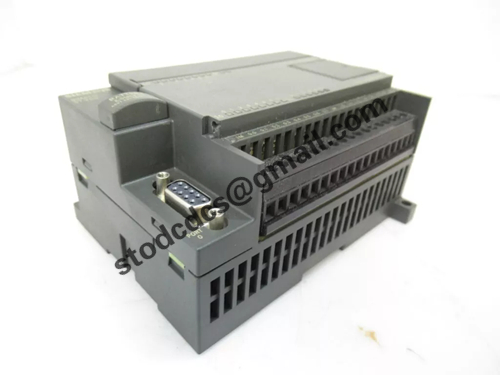

Product details picture:
