Siemens 6ES7214-1AD22-0XB0 Relay Power Module

Product manual:

Siemens 6ES7214-1AD22-0XB0 is a CPU 224XP DC/DC/relay module in the SIMATIC S7-200 series. This controller is designed for medium-sized automation tasks, with strong input-output capabilities and flexible functional scalability. It integrates digital and analog input-output functions and is equipped with relay control, making it suitable for various industrial control applications.
Main technical specifications:
Type: SIMATIC S7-200 CPU 224XP DC/DC/Relay
Input/output points:
14 digit inputs
10 digital outputs (relay outputs)
2 analog inputs
1 analog output
Power supply voltage: DC power supply, with a voltage range of 20.4 V to 28.8 V DC.
Storage capacity:
Program memory: 16 KB
Data storage: 10 KB
Communication interface:
1 RS-485 interface: supports PPI (point-to-point communication), MPI (multi-point communication), and Freeport mode.
Loop time: The basic instruction execution time is 0.22 microseconds per instruction, supporting fast response control.
Scalability: Supports up to 7 expansion modules to increase input/output points or add special function modules.
Working temperature: 0 ° C to 55 ° C, suitable for operation in industrial environments.

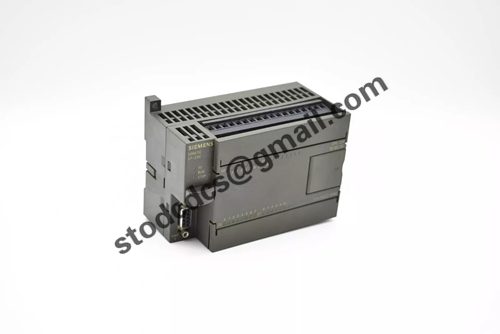

Product details picture:
