Details
SIEMENS 6ES714-1BF12-0XB0 Digital Input Module
Product manual:
Siemens 6ES7141-1BF12-0XB0 is a digital input module of the S7-1200 series, designed specifically for industrial automation systems. Here are some key features and specifications of this module:
Basic characteristics
Type: Digital Input Module
Input points: 16 digits input
Input voltage: 24 V DC
technical specifications
Operating voltage range: 20.4 V to 28.8 V DC
Input current: The maximum input current at each input point is approximately 7 mA
Response time: The response time of the input signal is usually 1 ms
Environmental temperature range: Operating temperature range is -20 ° C to+60 ° C
Installation and wiring
Module size: 70 mm x 100 mm x 75 mm
Installation method: DIN rail installation
Wiring method: screw terminal, suitable for various cable types
application area
Suitable for various industrial automation control systems, widely used in manufacturing, process control, and building automation, especially in applications that require digital signal acquisition.

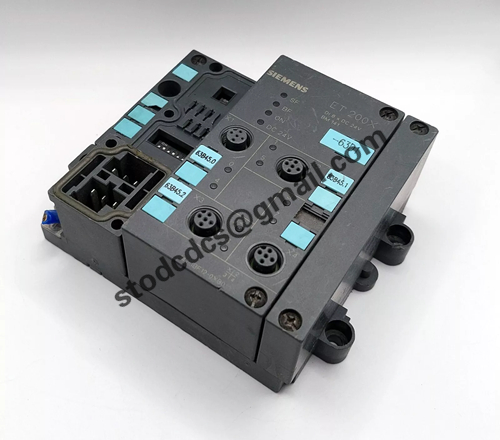

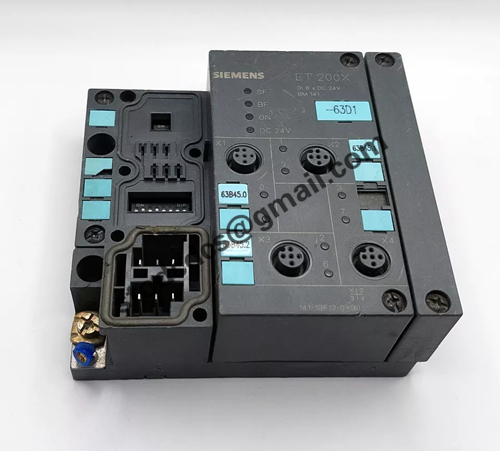

Product details picture:
